Запчасти Case IH FARMALL 115C (21.104.AL) - VAR - 744762, 744763, 744764 - TRANSMISSION LUBRICATION LINE, LEFT SIDE (21) - TRANSMISSION

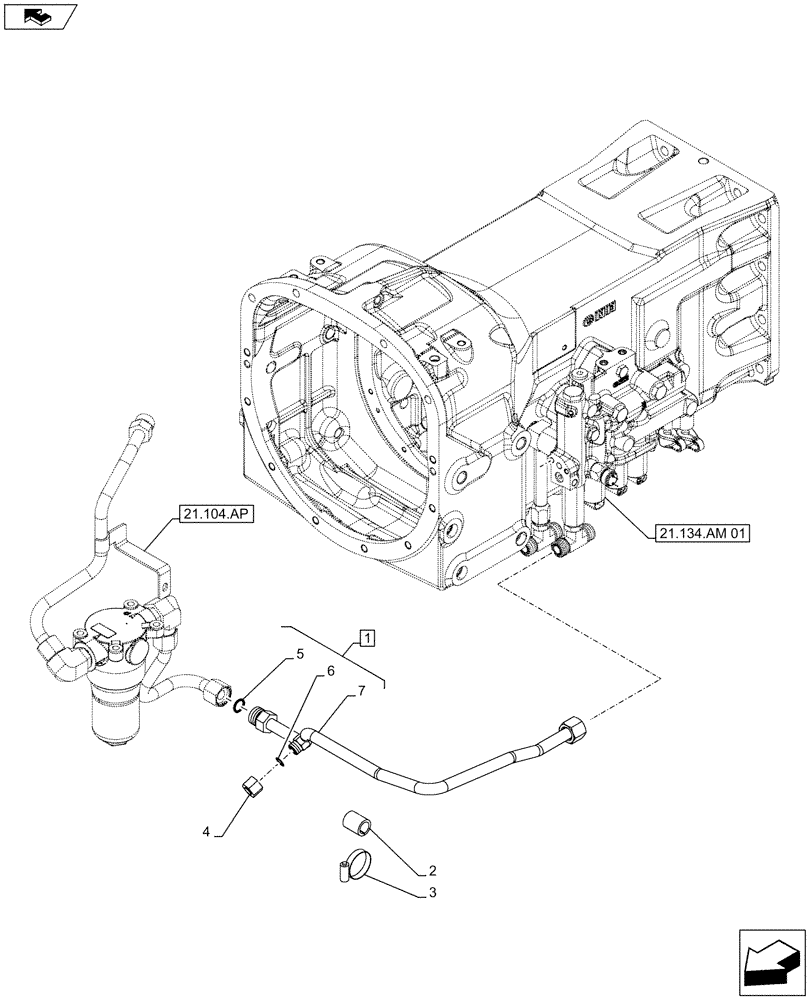

Схема запчастей Case IH FARMALL 115C - (21.104.AL) - VAR - 744762, 744763, 744764 - TRANSMISSION LUBRICATION LINE, LEFT SIDE (21) - TRANSMISSION
21.104.ap
home
5
6
7
3
1
4
2
21.134.am 01

Артикул

Название

Примечание

Количество

1

47389635

TUBE

Assy, Incl 5-7

1шт.

2

4959735

SPACER,18mm ID x 25mm OD x 30mm L

1шт.

3

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

4

9625546

CAP,11/16" - 16 ORFS

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

PIPE, Incl in 1

1шт.

Выбрано товаров: 7
