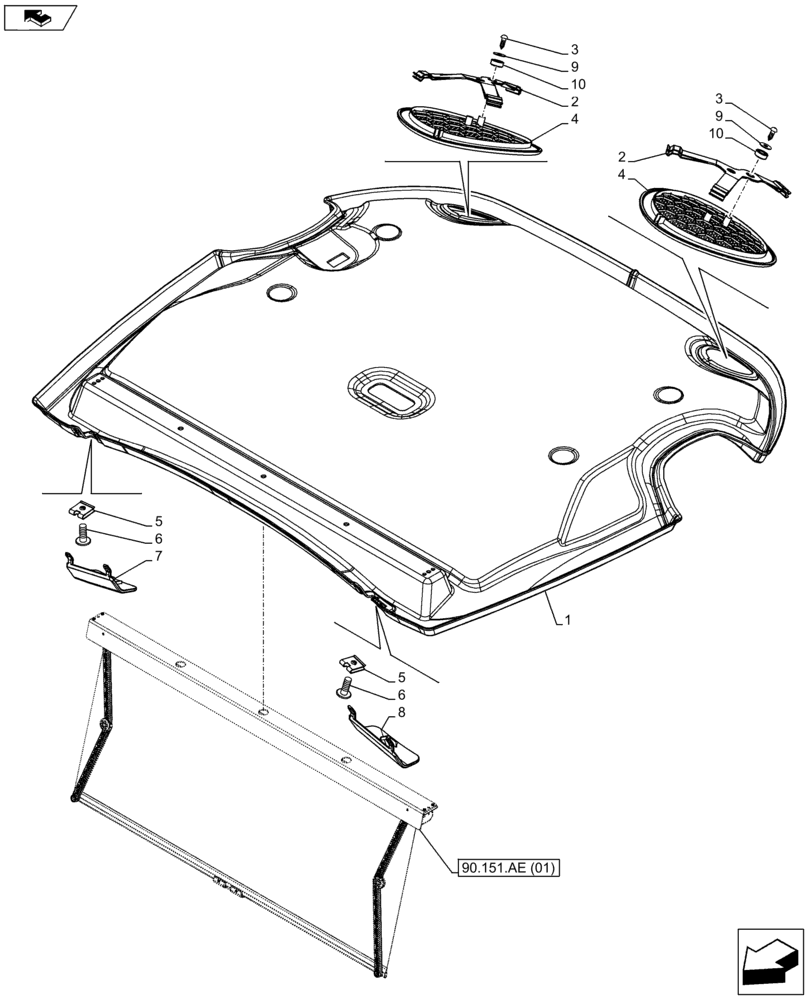

Запчасти Case IH FARMALL 115C (90.160.AX[01]) - VAR - 391606, 331606, 743573, 334181, 744588 - CAB HEADLINER - END YR 29-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84317261

SOFT TRIM

Headliner, W/O Hatch

1шт.

2

47422558

BRACKET

2шт.

3

15901470

SELF-TAP SCREW,Cross Pan Hd, M2.90 x 1.1 x 9.50mm

4шт.

4

47422523

GRILLE

2шт.

5

14369271

SPRING NUT,U, M6 x 16.20mm x 0.50mm Thk, ZND

2шт.

6

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

2шт.

7

84317600

COVER

RH

1шт.

8

84317607

COVER

LH

1шт.

9

14446821

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

4шт.

10

47422464

SPACER,5.7mm ID x 10mm OD x 4mm L

10mm OD x 5.7mm ID x 4mm H

4шт.
