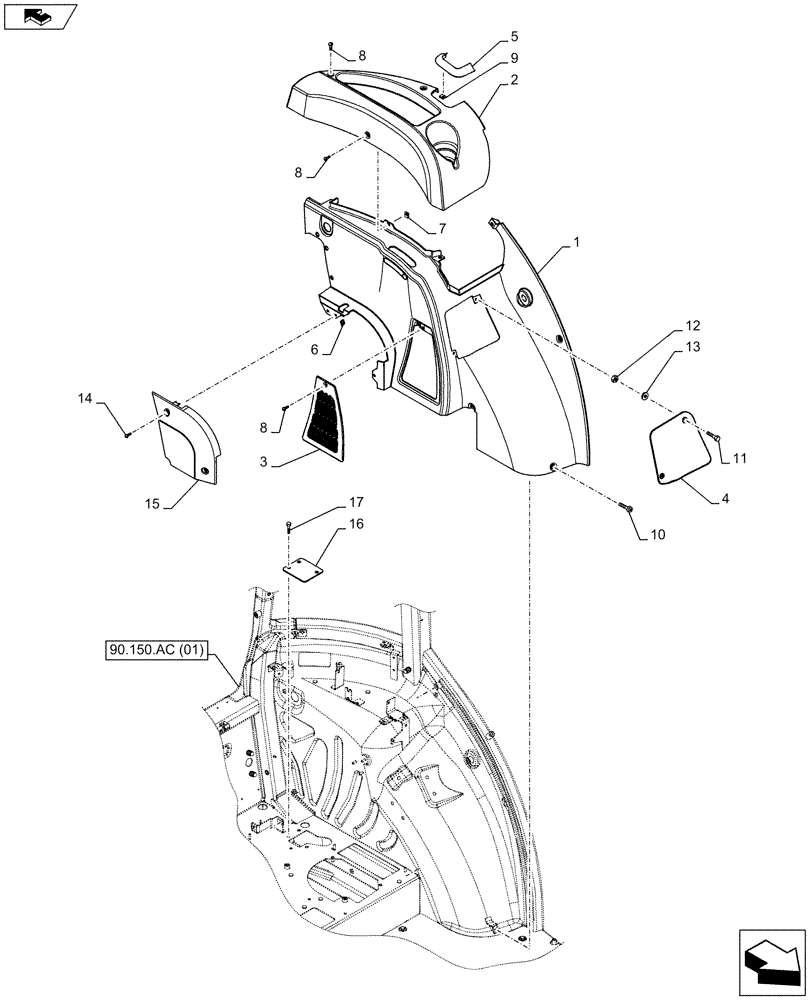

Запчасти Case IH FARMALL 115C (90.160.AM[05]) - VAR - 334179, 334211, 336606, 391606, 743496, 7432573 - CAB INTERIOR TRIM, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84316097

TRIM PANEL

1шт.

2

84316095

TRIM PANEL

1шт.

3

84316040

FILTER COVER

1шт.

4

84316098

PLUG,Cradle WA

1шт.

5

84347880

RUBBER SEAL,123.8mm L

1шт.

6

14371774

SPRING NUT,M6, U, 12mm long

2шт.

7

84291986

CLIP,18.8mm L x 15.9mm W

2шт.

8

84479751

SCREW,M6 x 12mm L

5шт.

9

14183474

PUSH-ON NUT,M4, Push

5шт.

10

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

8шт.

11

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

5шт.

12

16100814

NUT,M8, Cl 8, DAC

5шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

14

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

15

84316029

TRIM PANEL

1шт.

For ISO Market Only

1шт.

15

84316574

TRIM

1шт.

For NA Market Only

1шт.

16

84305735

PLUG

1шт.

For NA Market Only

1шт.

17

16043211

BOLT,Hex, M8 x 1.25 x 16mm, Cl 5.8, Full Thd

3шт.

For NA Market Only

1шт.
