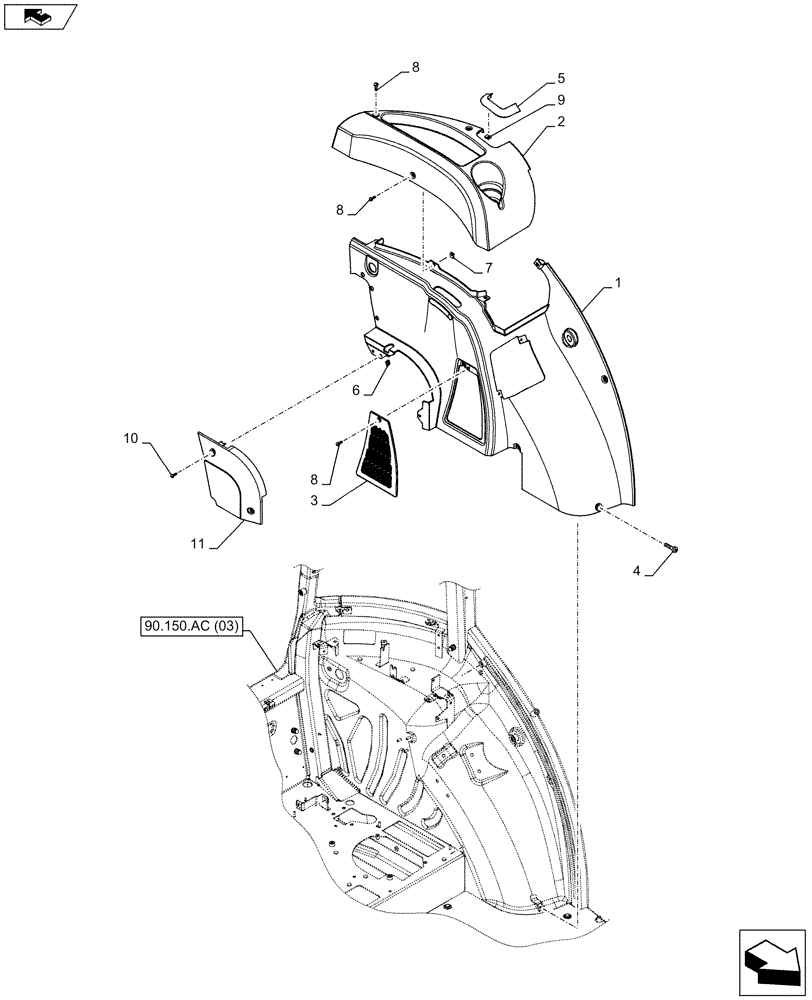

Запчасти Case IH FARMALL 115C (90.160.AM[03]) - VAR - 334181, 334182, 334184 - CAB INTERIOR TRIM, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84316097

TRIM PANEL

1шт.

2

84316095

TRIM PANEL

1шт.

3

84316040

FILTER COVER

1шт.

4

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

8шт.

5

84347880

RUBBER SEAL,123.8mm L

1шт.

6

14371774

SPRING NUT,M6, U, 12mm long

2шт.

7

84291986

CLIP,18.8mm L x 15.9mm W

2шт.

8

84479751

SCREW,M6 x 12mm L

5шт.

9

14183474

PUSH-ON NUT,M4, Push

5шт.

10

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

11

84316029

TRIM PANEL

1шт.
