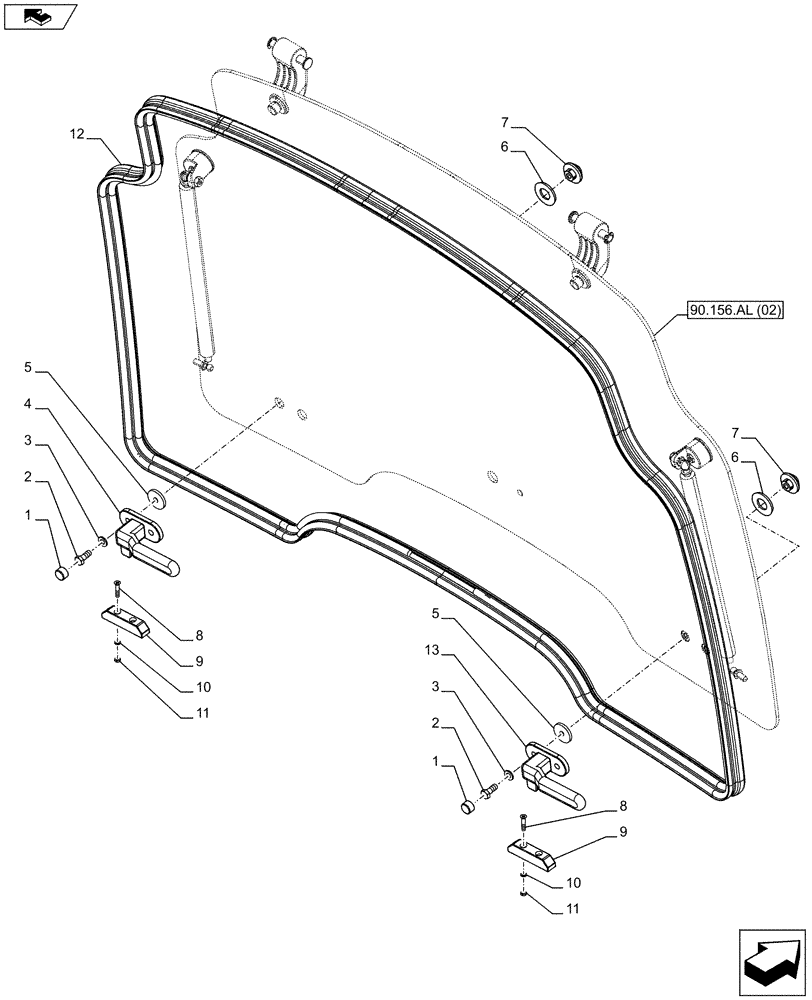

Запчасти Case IH FARMALL 115C (90.156.AL[03]) - VAR - 331606, 334181, 334182, 334184, 334212, 339606 - CAB GLASS, WINDSHIELD - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5089481

CAP,17mm OD

6шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

3

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

6шт.

4

5089564

HANDLE

1шт.

5

5094375

WASHER,8mm ID x 32.2mm OD x 3.9mm Thk

4шт.

6

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

4шт.

7

5094141

NUT,Spheric, M8

4шт.

8

843-2525

SCREW,M5 x 25mm L

4шт.

9

5094377

BRACKET

2шт.

10

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

4шт.

11

14048617

LOCK NUT,M5 x .8

4шт.

12

84224275

SEAL, GLASS

1шт.

13

5095078

HANDLE

1шт.
