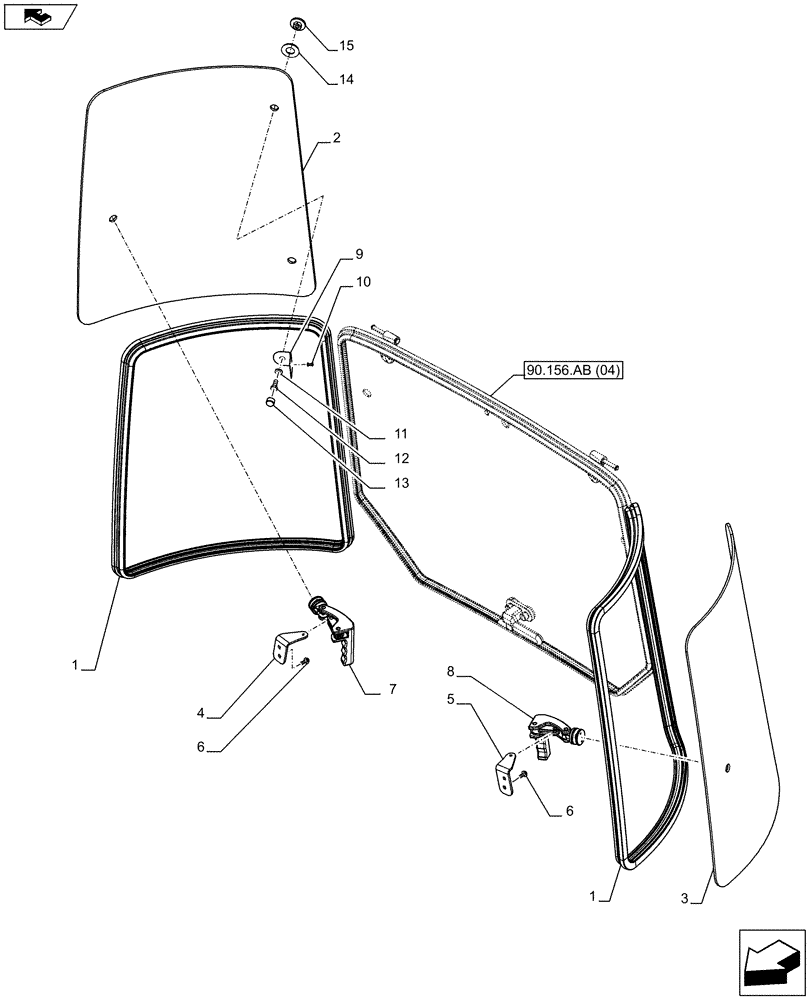

Запчасти Case IH FARMALL 115C (90.156.AB[05]) - VAR - 334181, 334182, 334184, 334212, 339606 - CAB GLASS, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84224277

SEAL, GLASS,2250mm L

2шт.

2

84224146

GLASS

RH

1шт.

3

84224147

GLASS

LH

1шт.

4

84369167

BRACKET

RH

1шт.

5

84369170

BRACKET

LH

1шт.

6

84479754

SCREW,Cross Rec Cheese Hd, M6 x 20mm, Cl 5.8

4шт.

7

5096473

HANDLE

RH

1шт.

8

5096474

HANDLE

LH

1шт.

9

84368803

BRACKET

4шт.

10

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

8шт.

11

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

6шт.

12

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

13

5089481

CAP,17mm OD

6шт.

14

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

6шт.

15

5094141

NUT,Spheric, M8

6шт.
