(90.151.AD[01]) - VAR - 330706 - DRIVER SEAT, BELT - ISO

Запчасти Case IH FARMALL 115C (90.151.AD[01]) - VAR - 330706 - DRIVER SEAT, BELT - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

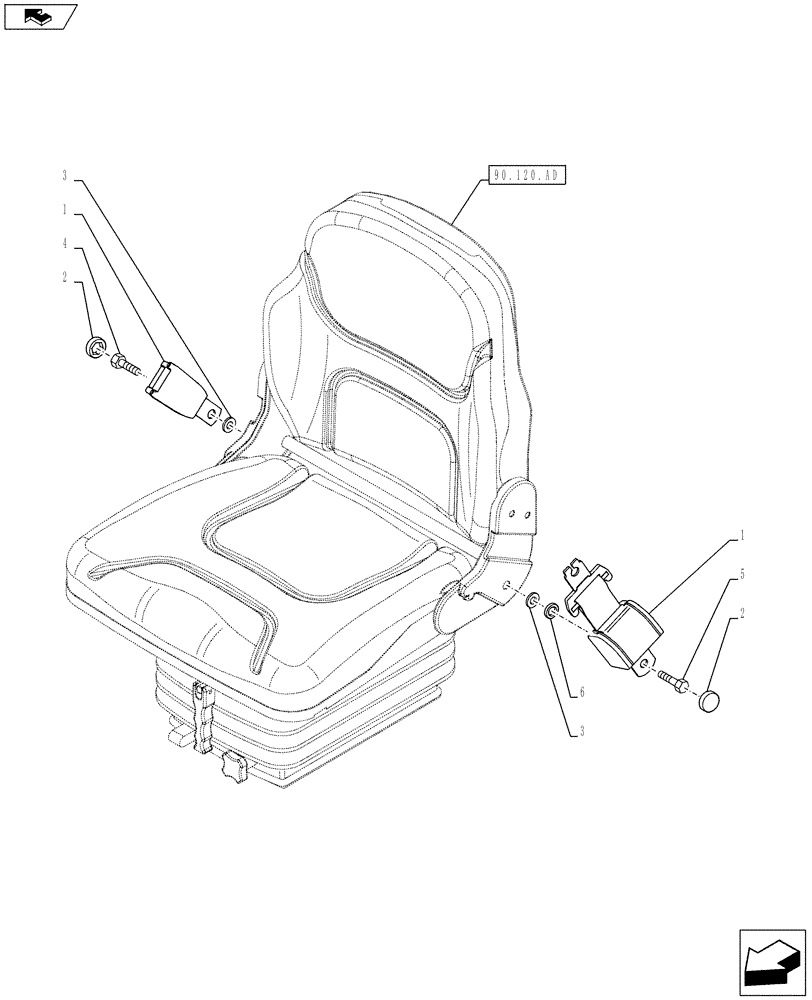

Схема запчастей Case IH FARMALL 115C - (90.151.AD[01]) - VAR - 330706 - DRIVER SEAT, BELT - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
3
2
90.120.ad
1
home
5
2
1
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84359360

SEAT BELT

1шт.

2

5080271

COVER,17.5mm ID

2шт.

3

84355679

LOCK WASHER,20.5mm OD x 13mm ID

2шт.

4

5080270

SCREW,7/16 UNF x 25mm

1шт.

5

84361158

SCREW,7/16 UNF x 30mm

1шт.

6

84361166

BUSHING,20mm OD x 12mm ID x 7.5mm L

1шт.
