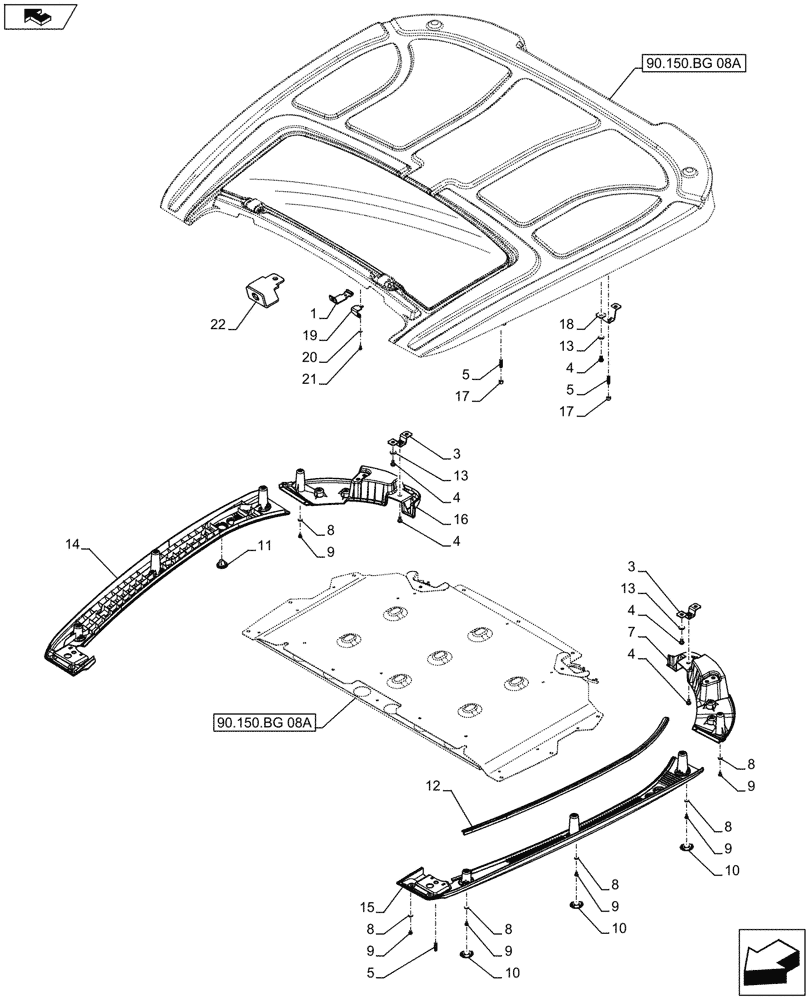

Запчасти Case IH FARMALL 115C (90.150.BG[09A]) - VAR - 743496, 334179, 334180, 334183, 334185, 334211, 336606 - CAB ROOF, SUPPORT - NA - BEGIN YR 10-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47398004

BRACKET

, Years: 19-NOV-12-07-MAY-14

1шт.

2

84317189

PANEL

LH

1шт.

3

84317193

BRACKET

2шт.

4

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

10шт.

5

13516924

STUD,M8 x 34mm L, Cl. 8.8

6шт.

6

84317188

PANEL

RH

1шт.

7

84317189

PANEL

LH

1шт.

8

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

12шт.

9

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

12шт.

10

84317182

PLUG,44mm OD, Black

6шт.

11

84317184

PLUG,35mm OD, Black

4шт.

12

84275319

RUBBER SEAL,897mm L

2шт.

13

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

14

47410967

PANEL

RH

1шт.

15

47410992

PANEL

LH

1шт.

16

84317188

PANEL

RH

1шт.

17

16104114

LOCK NUT,M8, Cl 8

4шт.

18

84317195

BRACKET

2шт.

19

84337732

BRACKET

, Years: -18-NOV-12

1шт.

20

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

21

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.

22

47613002

BRACKET

, Start Year: 08-MAY-14

1шт.
