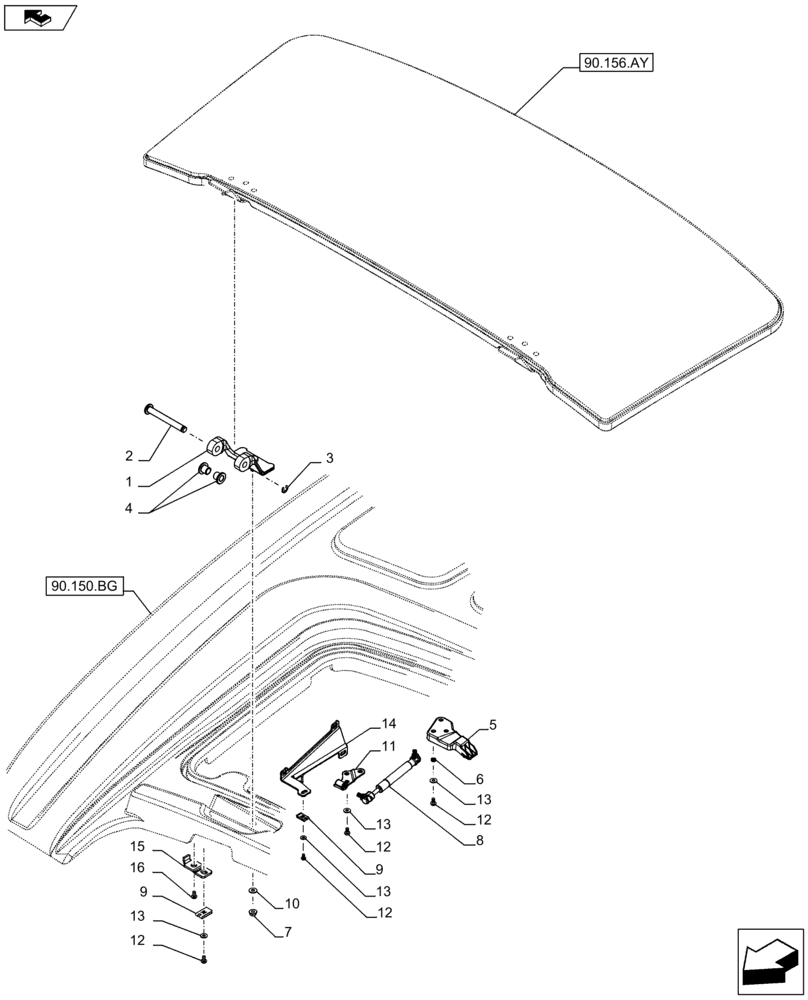

Запчасти Case IH FARMALL 115C (90.150.BC[04B]) - VAR - 743496, 334179, 334180, 334183, 334185, 334211, 336606 - CAB ROOF, HATCH (HI-LO) - BEGIN YR 30-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84585046

HINGE

2шт.

2

84277677

PIN,8mm OD x 68mm L

D=8

2шт.

3

800-436

CIRCLIP,M6

2шт.

4

84276011

BUSHING,8mm ID x 10mm OD x 11mm L

10mm OD x 8mm ID x 11mm H

4шт.

5

47437393

BRACKET

LH

1шт.

5

47437403

BRACKET

RH

1шт.

6

47451478

BUSHING,7.2mm ID x 9.2mm OD x 2.8mm L

6шт.

7

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

8

47441742

GAS STRUT

2шт.

9

14371774

SPRING NUT,M6, U, 12mm long

8шт.

10

12640604

WASHER,6.15mm ID x 25mm OD x 2mm Thk

2шт.

11

47455917

BRACKET

Gas Spring, LH

1шт.

11

47455918

BRACKET

Gas Spring, RH

1шт.

12

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

24шт.

13

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

24шт.

14

47441754

BRACKET

LH

1шт.

14

47441755

BRACKET

RH

1шт.

15

47446217

BRACKET

2шт.

16

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

2шт.
