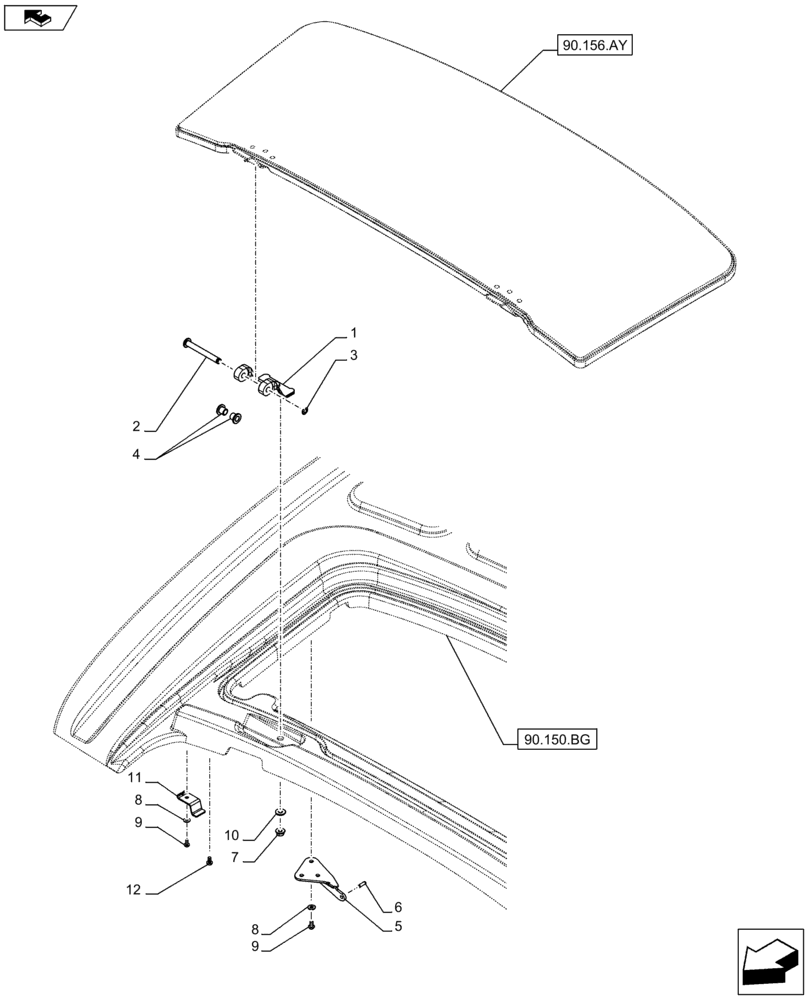

Запчасти Case IH FARMALL 115C (90.150.BC[03A]) - VAR - 743496, 334179, 334180, 334183, 334185, 334211, 336606 - CAB ROOF, HATCH - NA - BEGIN YR 10-OCT-2012 - END YR 29-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84585046

HINGE

2шт.

2

84277677

PIN,8mm OD x 68mm L

2шт.

3

800-436

CIRCLIP,M6

2шт.

4

84276011

BUSHING,8mm ID x 10mm OD x 11mm L

4шт.

5

84604010

BRACKET

RH

1шт.

5

84603996

BRACKET

LH

1шт.

6

14600670

LOCK PIN,M5 x 16, Slotted

2шт.

7

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

8

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

8шт.

9

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

8шт.

10

12640604

WASHER,6.15mm ID x 25mm OD x 2mm Thk

2шт.

11

84319350

BRACKET

2шт.

12

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

2шт.
