(90.150.AC[06A]) - VAR - 339606, 334212, 334184, 334182, 334181, 331606 - CAB FRAME, OPENABLE WINDSHIELD, SPARK ARRESTER, ISO - BEGIN YR 01-APR-2014

Запчасти Case IH FARMALL 115C (90.150.AC[06A]) - VAR - 339606, 334212, 334184, 334182, 334181, 331606 - CAB FRAME, OPENABLE WINDSHIELD, SPARK ARRESTER, ISO - BEGIN YR 01-APR-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

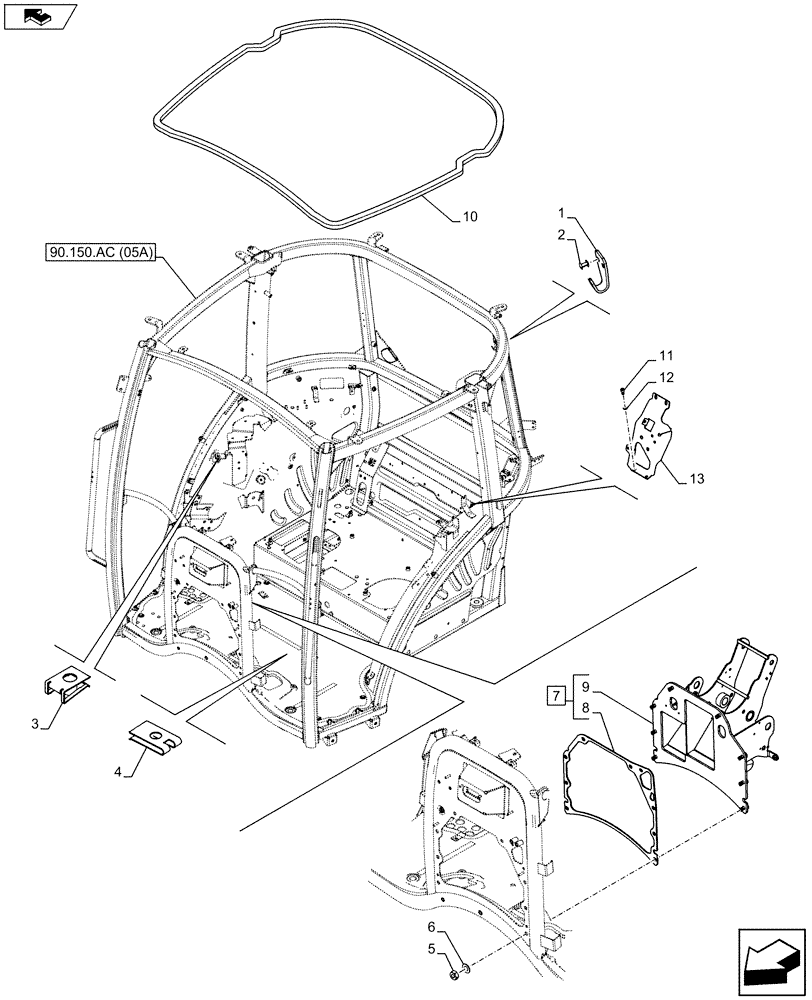

Схема запчастей Case IH FARMALL 115C - (90.150.AC[06A]) - VAR - 339606, 334212, 334184, 334182, 334181, 331606 - CAB FRAME, OPENABLE WINDSHIELD, SPARK ARRESTER, ISO - BEGIN YR 01-APR-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (05a)
3
1
5
9
6
13
12
7
8
4
10
11
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84496617

COAT HOOK

1шт.

2

14642791

RIVET,Tr Hd, M4.8 x 12, Aluminum

2шт.

3

14189071

SPRING NUT,M6

M6

1шт.

4

14371774

SPRING NUT,M6, U, 12mm long

21шт.

5

12164721

NUT,M10 x 1.25, Cl 10

8шт.

6

12601470

LOCK WASHER,B10 Wave Spring, 0.50mm ID x 21mm OD x 1mm, HDN

8шт.

7

47360351

SUPPORT

ASSY, Incl 8, 9, Years: -11-MAY-14

1шт.

7

47580769

SUPPORT

ASSY, Incl 8, 9, Start Year: 12-MAY-14

1шт.

8

84535896

GASKET,3mm Thk

1шт.

9

NSS

NOT SOLD SEPARAT

Support, Incl in 7

1шт.

10

47411372

RUBBER SEAL,30mm W x 4530mm L x 20mm Thk

1шт.

11

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

4шт.

12

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

4шт.

13

47482445

BRACKET

Trim SX

1шт.
