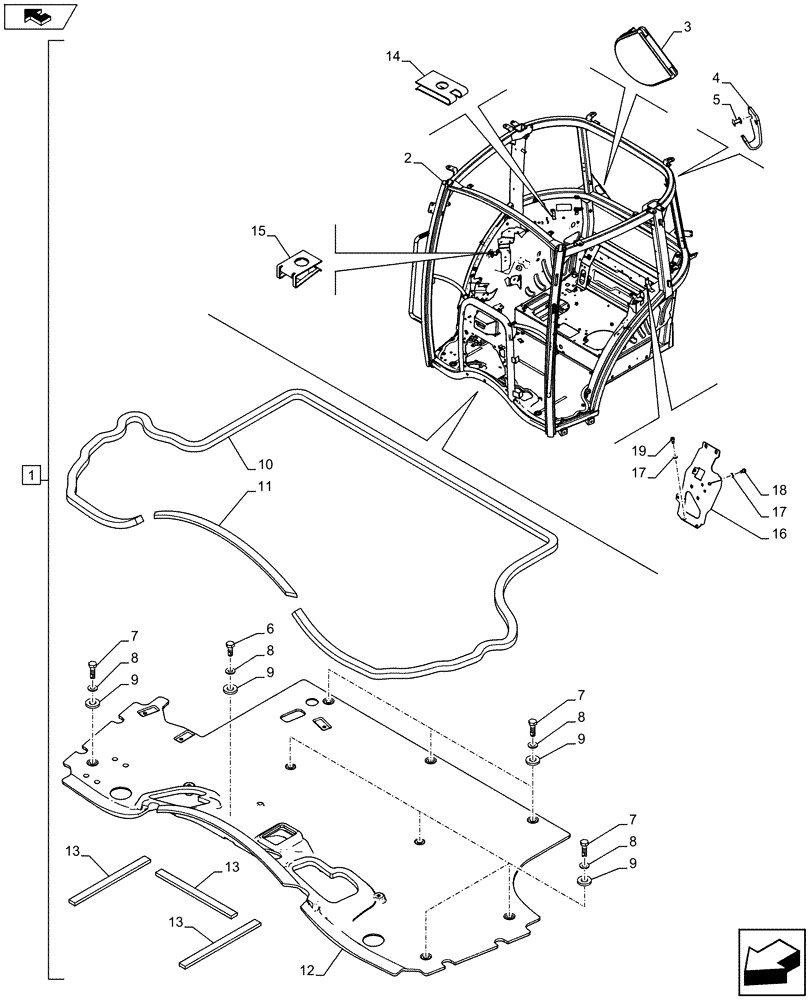

Запчасти Case IH FARMALL 115C (90.150.AC[05]) - VAR - 339606, 334212, 334184, 334182, 334181, 331606 - CAB FRAME, OPENABLE WINDSHIELD, ISO - END YR 31-MAR-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47387960

FRAME

ASSY, Incl 2 - 19

1шт.

2

NSS

NOT SOLD SEPARAT

Cab Frame, Incl in 1

1шт.

3

84290317

PLUG

1шт.

4

84496617

COAT HOOK

1шт.

5

14644190

RIVET,M3.9 x 11.1mm

2шт.

6

86639144

BOLT,Hex, Lock, M8 x 20, Cl 10.9

1шт.

7

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

8шт.

8

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

9шт.

9

47546193

RUBBER WASHER,12mm ID x 25mm OD x 4mm Thk

, Start Year: 09-OCT-13

9шт.

10

84555865

SEALING STRIP,20mm W x 3500mm L x 8mm Thk

, Years: -08-OCT-13

1шт.

10

47547815

SEAL

, Start Year: 09-OCT-13

1шт.

11

84555868

SEAL,510mm L

1шт.

12

84316786

CARPET

1шт.

13

84555891

SEALING STRIP,20mm W x 250mm L x 8mm Thk

3шт.

14

14371774

SPRING NUT,M6, U, 12mm long

24шт.

15

14189071

SPRING NUT,M6

1шт.

16

47372105

BRACKET

Trim SX

1шт.

17

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

5шт.

18

16043480

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

1шт.

19

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

4шт.
