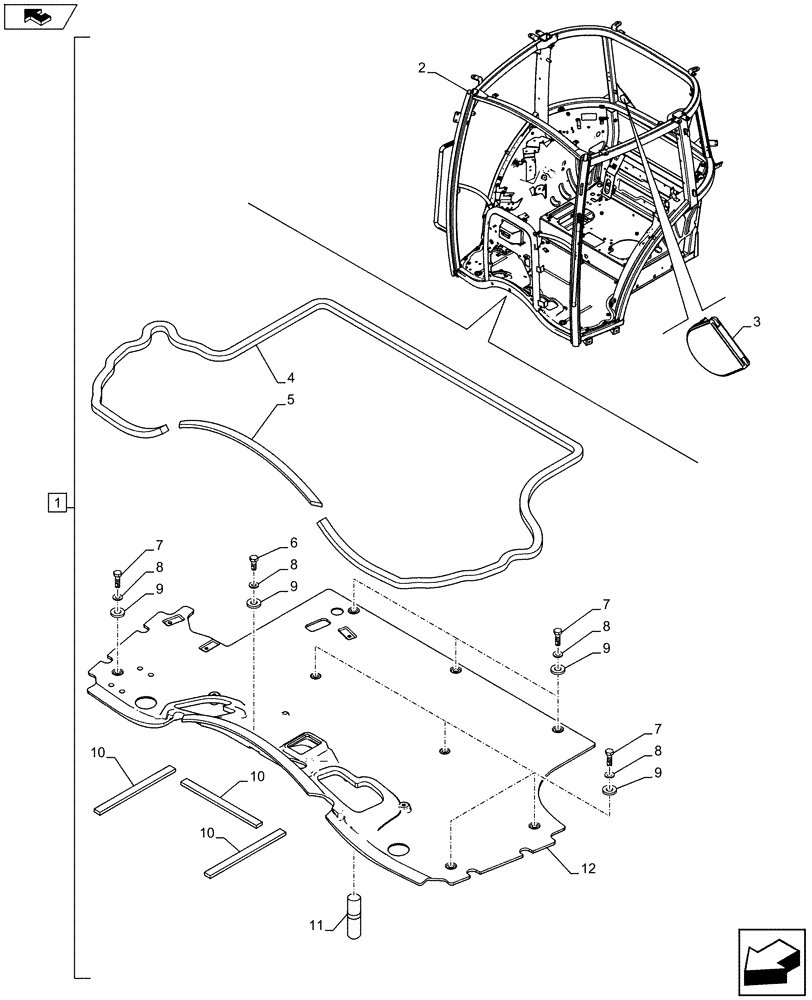

Запчасти Case IH FARMALL 115C (90.150.AC[01A]) - VAR - 744588, 743573, 743496, 391606, 336606, 334211, 334183, 334180 - CAB FRAME, FIXED WINDSHIELD, ISO - BEGIN YR 01-APR-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47479213

FRAME

ASSY, Incl 2 - 12, Years: -09-MAR-15

1шт.

1

47602664

FRAME

ASSY, Incl 2 - 12, Start Year: 10-MAR-15

1шт.

2

NSS

NOT SOLD SEPARAT

Cab Frame, Incl in 1

1шт.

3

84290317

PLUG

1шт.

4

47547815

SEAL

1шт.

5

84555868

SEAL,510mm L

1шт.

6

86639144

BOLT,Hex, Lock, M8 x 20, Cl 10.9

1шт.

7

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

8шт.

8

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

9шт.

9

47546193

RUBBER WASHER,12mm ID x 25mm OD x 4mm Thk

9шт.

10

84555891

SEALING STRIP,20mm W x 250mm L x 8mm Thk

3шт.

11

11500124

STUD,M6 x 23mm L, Cl 8.8

M6 x 14 x 9mm, Cl 8.8

4шт.

12

84316786

CARPET

1шт.
