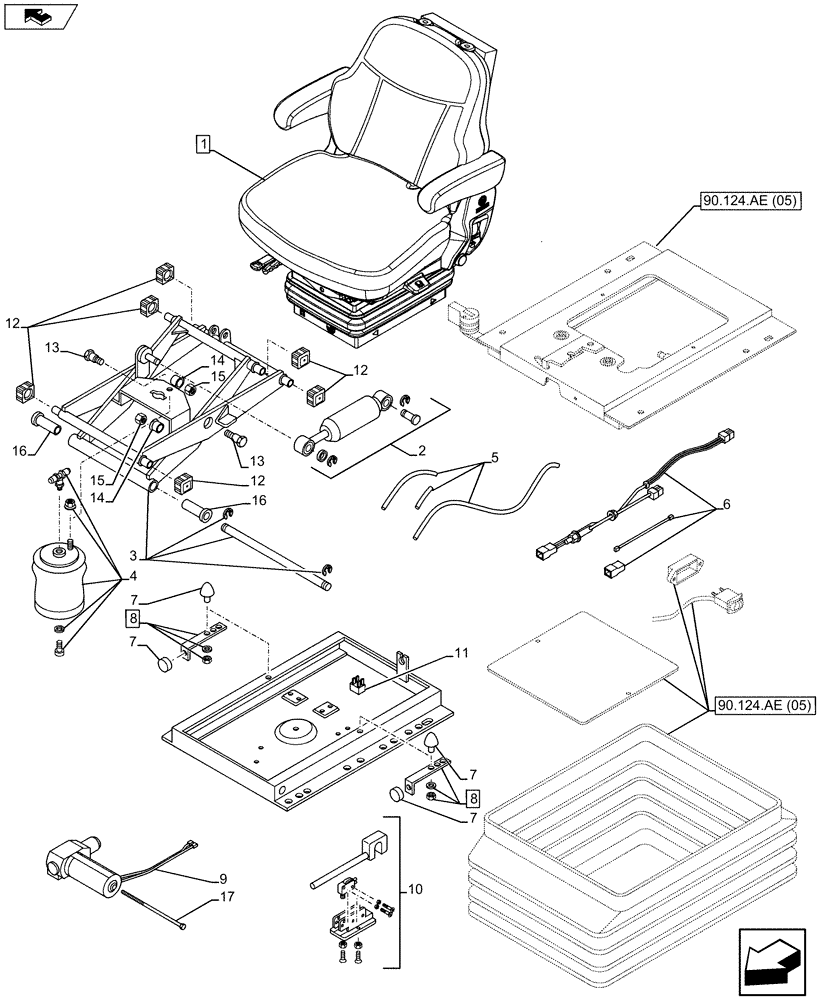

Запчасти Case IH FARMALL 115C (90.124.AE[04]) - VAR - 331850 - DRIVER SEAT, W/ AIR SUSPENSION, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84301433

DRIVER SEAT

Assy, Incl 2 - 12

1шт.

Includes Also 90.124.AE (02) to 90.124.AE (03), 90.124.AE (05)

1шт.

2

47438693

KIT

Shock Absorber

1шт.

3

47438704

KIT

Scissor Assy

1шт.

4

47438732

KIT

Air Hardware

1шт.

5

47438735

KIT

Air Hose

1шт.

6

47438936

KIT

Long Electric Cable

1шт.

7

47439001

KIT

Rubbers Bump Stop

1шт.

8

47439005

KIT

Bump Stop Bracket, Assy, Incl 7

1шт.

9

47438973

KIT

12V Compressor

1шт.

10

47439009

KIT

Switch Mechanism

1шт.

11

47438989

KIT

12V Relay

1шт.

12

47438649

KIT

Scissor Roller

1шт.

13

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

2шт.

17

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.
