Запчасти Case IH FARMALL 115C (90.124.AE[03]) - VAR - 331850 - DRIVER SEAT, W/ AIR SUSPENSION, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

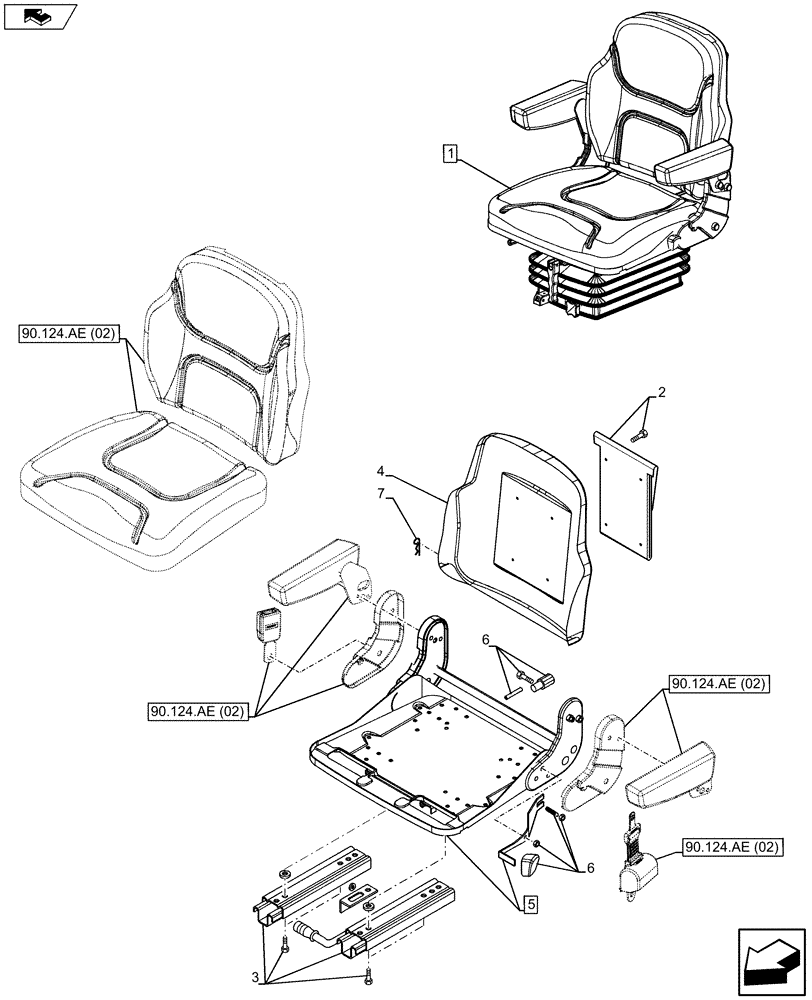

Схема запчастей Case IH FARMALL 115C - (90.124.AE[03]) - VAR - 331850 - DRIVER SEAT, W/ AIR SUSPENSION, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
90.124.ae (02)
2
7
6
3
90.124.ae (02)
90.124.ae (02)
4
6
90.124.ae (02)
1
5

Артикул

Название

Примечание

Количество

1

84301433

DRIVER SEAT

Assy, Incl 2 - 7

1шт.

Includes Also 90.124.AE (02), 90.124.AE (04) to 90.124.AE (05)

1шт.

2

84351150

KIT

Vinyl Document Pouch

1шт.

3

47439040

KIT

RH & LH Rails

1шт.

4

NSS

NOT SOLD SEPARAT

Backrest Frame, Incl in 1

1шт.

5

47388080

KIT

Hardware, Assy, Incl 6

1шт.

6

47387993

KIT

Hardware

1шт.

7

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

Выбрано товаров: 8
