Запчасти Case IH FARMALL 115C (90.124.AE[02]) - VAR - 331850 - DRIVER SEAT, W/ AIR SUSPENSION, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

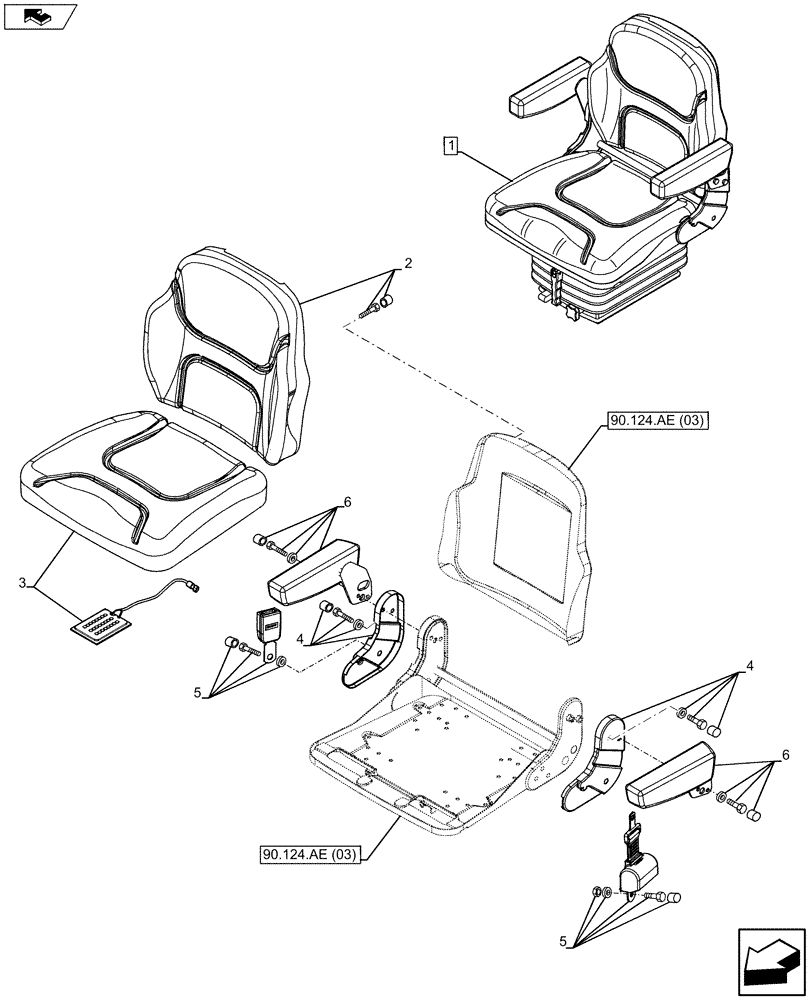

Схема запчастей Case IH FARMALL 115C - (90.124.AE[02]) - VAR - 331850 - DRIVER SEAT, W/ AIR SUSPENSION, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
90.124.ae (03)
6
90.124.ae (03)
5
home
4
6
4
5
3

Артикул

Название

Примечание

Количество

1

84301433

DRIVER SEAT

Assy, Incl 2 - 6

1шт.

Includes Also 90.124.AE (03) to 90.124.AE (05)

1шт.

2

84352163

BACKREST

1шт.

3

84352165

SEAT CUSHION

1шт.

Includes Operator's Presence Sensor (DOPS)

1шт.

4

47388032

KIT

Armrest Covers & Hardware

1шт.

5

84361127

SEAT BELT,73.5mm W x 1120mm L

L=1120mm

1шт.

5

84361200

SEAT BELT,51mm W x 1470mm L

L=1470mm

1шт.

6

84424659

KIT

RH and LH Armrests with Hardware

1шт.

Выбрано товаров: 9
