(90.124.AE[01]) - VAR - 331850 - DRIVER SEAT, W/ AIR SUSPENSION, W/ CAB

Запчасти Case IH FARMALL 115C (90.124.AE[01]) - VAR - 331850 - DRIVER SEAT, W/ AIR SUSPENSION, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

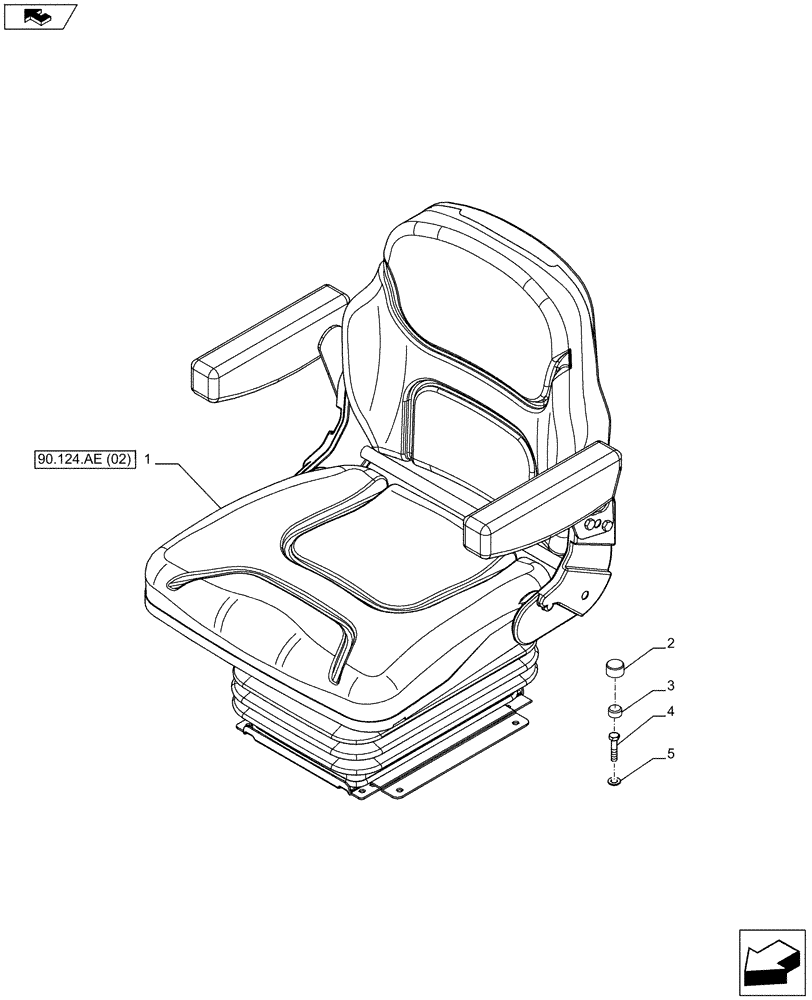

Схема запчастей Case IH FARMALL 115C - (90.124.AE[01]) - VAR - 331850 - DRIVER SEAT, W/ AIR SUSPENSION, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
home
1
5
2
90.124.ae (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84301433

DRIVER SEAT

1шт.

2

5089481

CAP,17mm OD

4шт.

3

15811487

CAP,13mm x 8.5mm

4шт.

4

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

5

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.
