(90.124.AC) - VAR - 332850 - DRIVER SEAT, AIR COMPRESSOR, HARNESS - END YR 18-AUG-2013

Запчасти Case IH FARMALL 115C (90.124.AC) - VAR - 332850 - DRIVER SEAT, AIR COMPRESSOR, HARNESS - END YR 18-AUG-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

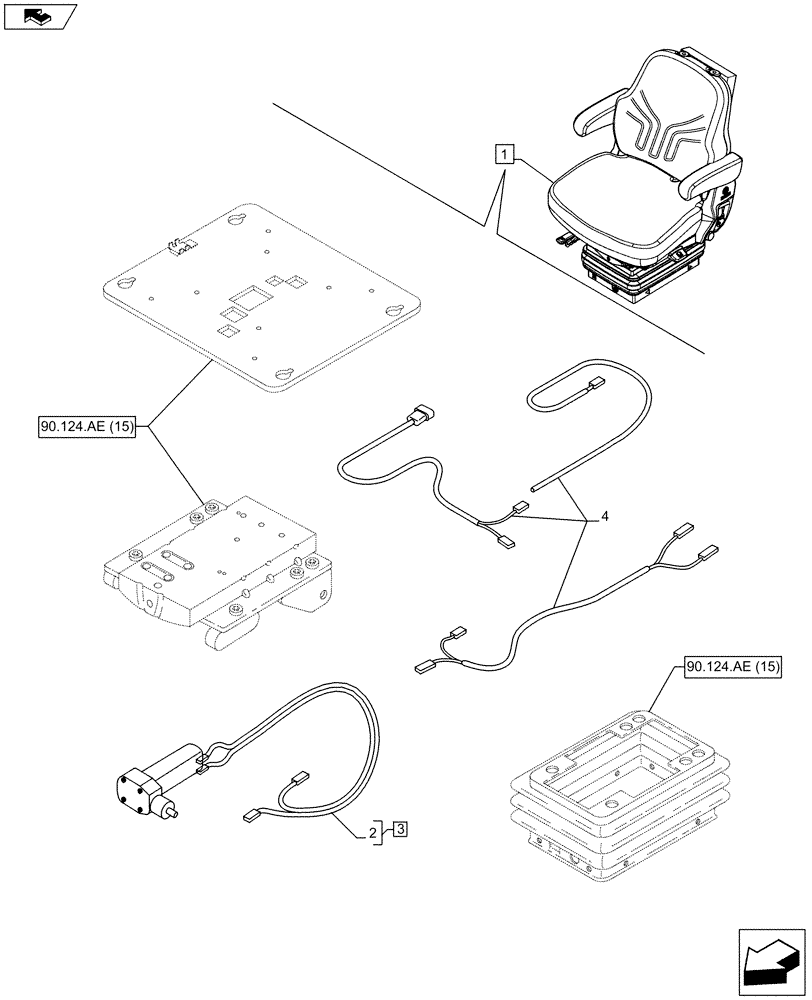

Схема запчастей Case IH FARMALL 115C - (90.124.AC) - VAR - 332850 - DRIVER SEAT, AIR COMPRESSOR, HARNESS - END YR 18-AUG-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
90.124.ae (15)
2
home
3
90.124.ae (15)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84347497

DRIVER SEAT

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Air Compressor Harness, Incl in 3

1шт.

3

87331939

AIR COMPRESSOR KIT

ASSY, Incl 2

1шт.

4

9971521

KIT

Air Compressor Harness

1шт.
