/ / / / / / / / (90.120.BB[02]) - SEAT, MECHANICAL - BREAKDOWN
Запчасти Case IH FARMALL 115C (90.120.BB[02]) - SEAT, MECHANICAL - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

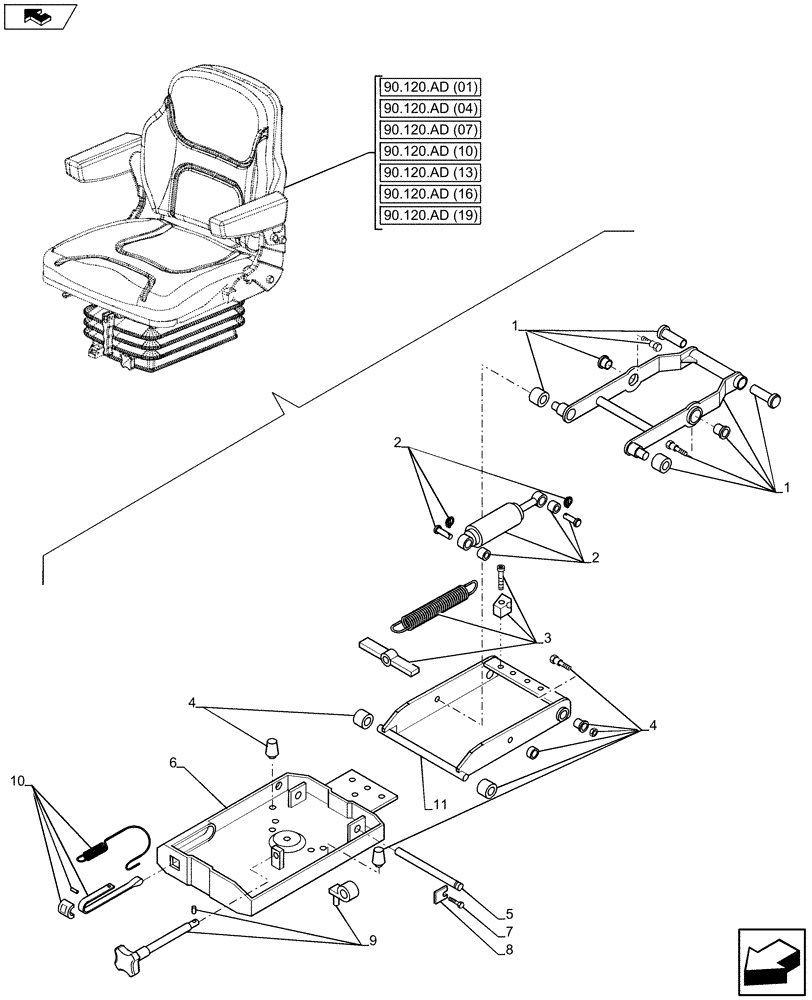

![Схема запчастей Case IH FARMALL 115C - (90.120.BB[02]) - SEAT, MECHANICAL - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/caseih/5135758.png)
1
90.120.ad (16)
home
10
90.120.ad (10)
9
1
90.120.ad (13)
90.120.ad (01)
11
2
90.120.ad (19)
3
4
6
90.120.ad (07)
4
90.120.ad (04)
2
5
7
8
1
47388497
KIT
Scissor Roller
1шт.
2
47388487
KIT
Shock Absorber
1шт.
3
47388076
KIT
Springs
1шт.
4
47388486
KIT
Rubbers Bump Stop
1шт.
5
NSS
NOT SOLD SEPARAT
Rod, Incl in Seat Assy
1шт.
6
NSS
NOT SOLD SEPARAT
Support, Incl in Seat Assy
1шт.
7
NSS
NOT SOLD SEPARAT
Screw, Incl in Seat Assy
1шт.
8
NSS
NOT SOLD SEPARAT
Plate, Incl in Seat Assy
1шт.
9
47387994
KIT
Height Adjustment Lever
1шт.
10
47382403
KIT
Weight Indicator
1шт.
11
NSS
NOT SOLD SEPARAT
Support, Incl in Seat Assy
1шт.
