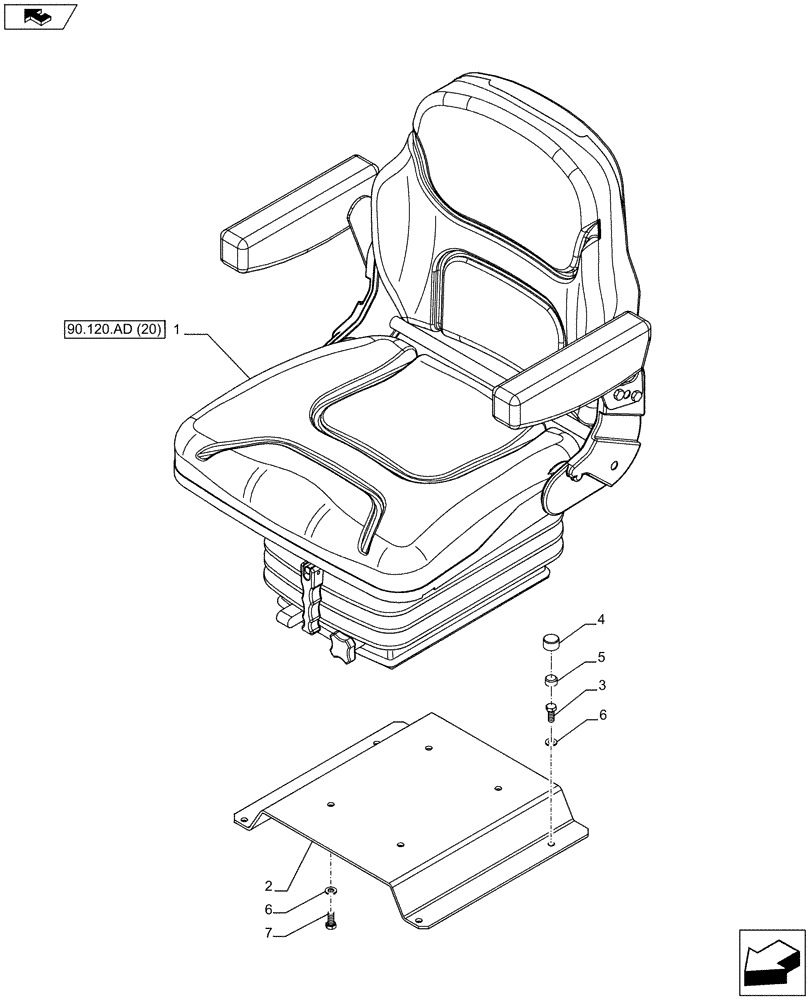

Запчасти Case IH FARMALL 115C (90.120.AD[19]) - VAR - 331156 - DRIVER SEAT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84352965

SEAT

1шт.

2

84309301

SEAT SUPPORT

1шт.

3

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

4

5089481

CAP,17mm OD

4шт.

5

15811487

CAP,13mm x 8.5mm

4шт.

6

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8шт.

7

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.
