(90.120.AD[11]) - VAR - 390901 - DRIVER SEAT, W/O CAB - OPERATOR PRESSURE SWITCH

Запчасти Case IH FARMALL 115C (90.120.AD[11]) - VAR - 390901 - DRIVER SEAT, W/O CAB - OPERATOR PRESSURE SWITCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

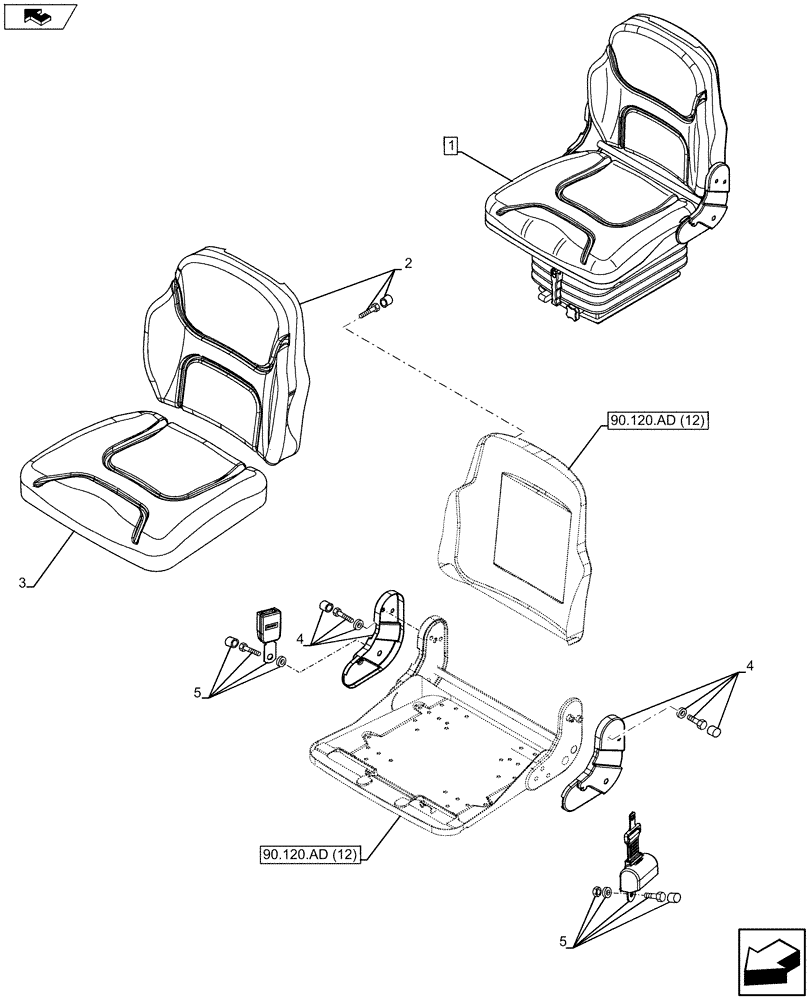

Схема запчастей Case IH FARMALL 115C - (90.120.AD[11]) - VAR - 390901 - DRIVER SEAT, W/O CAB - OPERATOR PRESSURE SWITCH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.ad (12)
1
home
5
4
4
5
2
3
90.120.ad (12)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84352963

SEAT

Assy, Incl 2 - 5

1шт.

Includes Also 90.120.AD (12) and 90.120.BB

1шт.

2

84539309

BACKREST

1шт.

3

47449249

SEAT CUSHION

1шт.

Includes Operator's Presence Sensor (DOPS)

1шт.

4

47388032

KIT

Armrest Covers & Hardware

1шт.

5

84361200

SEAT BELT,51mm W x 1470mm L

L=1470mm

1шт.
