(90.120.AD[10]) - VAR - 390901 - DRIVER SEAT, W/O CAB - OPERATOR PRESSURE SWITCH

Запчасти Case IH FARMALL 115C (90.120.AD[10]) - VAR - 390901 - DRIVER SEAT, W/O CAB - OPERATOR PRESSURE SWITCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

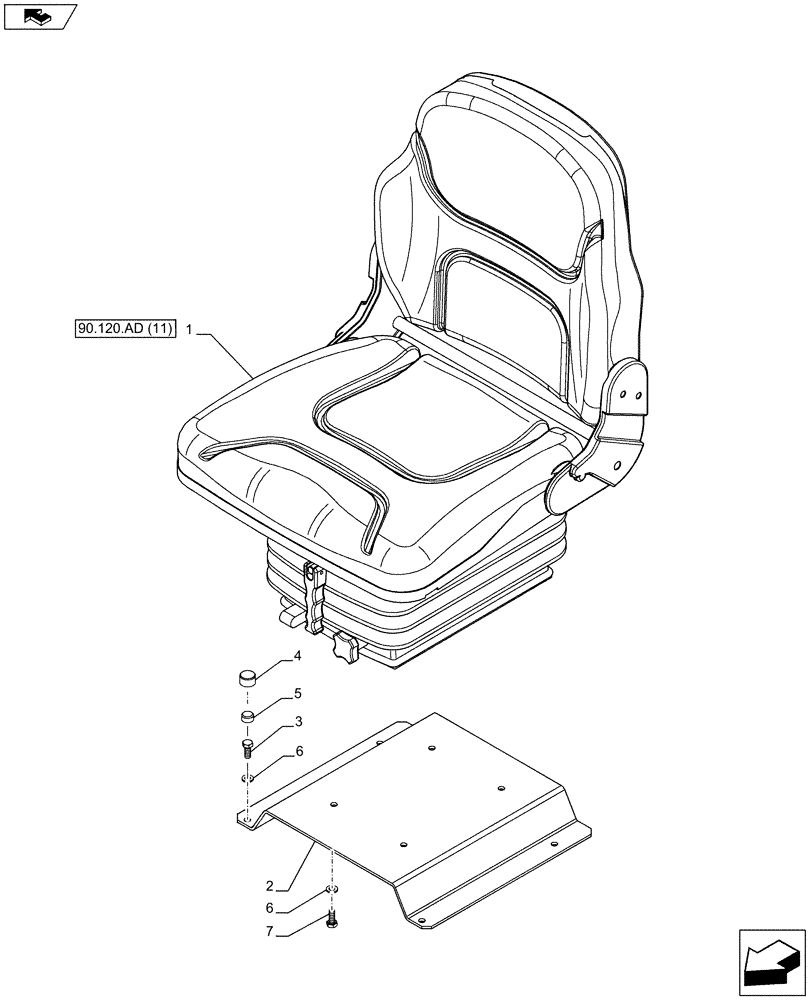

Схема запчастей Case IH FARMALL 115C - (90.120.AD[10]) - VAR - 390901 - DRIVER SEAT, W/O CAB - OPERATOR PRESSURE SWITCH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.ad (11)
6
1
home
7
5
3
6
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84352963

SEAT

1шт.

2

84309301

SEAT SUPPORT

1шт.

3

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

4

5089481

CAP,17mm OD

4шт.

5

15811487

CAP,13mm x 8.5mm

4шт.

6

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8шт.

7

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.
