Запчасти Case IH FARMALL 115C (82.100.BG[04]) - VAR - 335490, 337490, 336744, 336745, 366746, 336747 - LOADER ARM, PIN (82) - FRONT LOADER & BUCKET

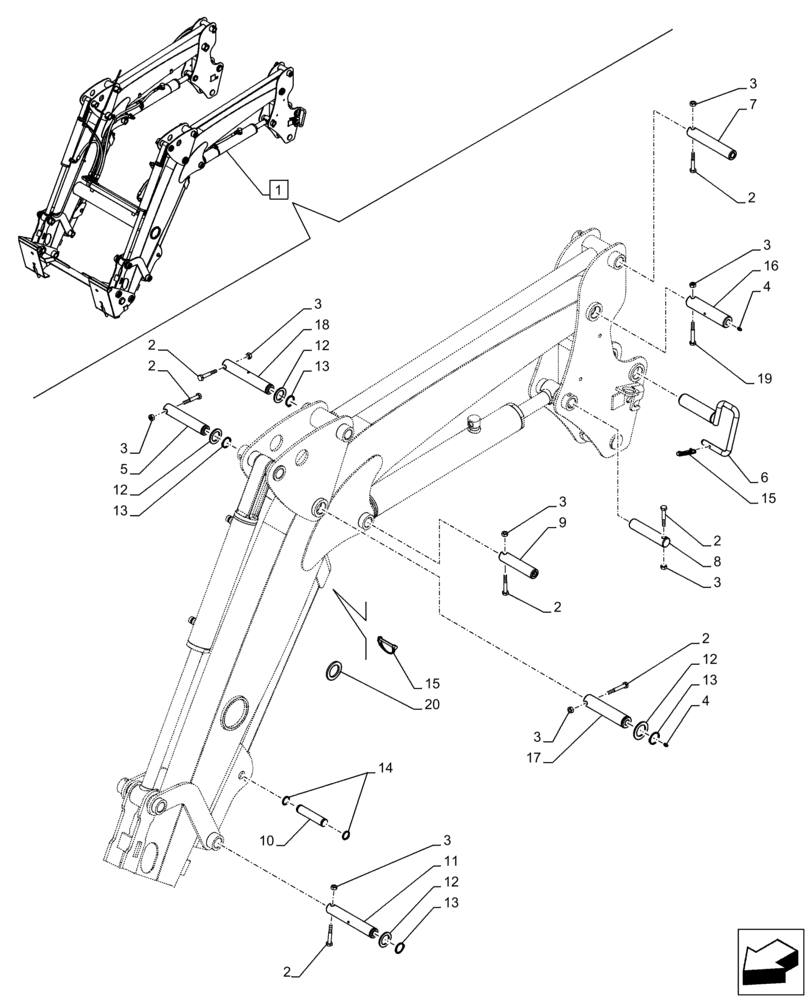

Схема запчастей Case IH FARMALL 115C - (82.100.BG[04]) - VAR - 335490, 337490, 336744, 336745, 366746, 336747 - LOADER ARM, PIN (82) - FRONT LOADER & BUCKET
8
17
2
3
3
20
12
4
2
3
11
6
10
3
9
13
19
12
3
4
13
18
13
3
2
2
2
12
1
2
15
16
3
14
5
7
3
15
12
13
2

Артикул

Название

Примечание

Количество

1

84467881

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers - SSL Tool Attach., Var. 335490, 337490, 336744

1шт.

1

47649274

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336745

1шт.

1

47504906

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers - EU Tool Attach., Var. 336746

1шт.

1

47504995

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336747

1шт.

2

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

14шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

16шт.

4

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1 x 12mm

4шт.

5

84575161

PIN

Bucket Cylinder

2шт.

6

84393576

PIN

Mobile Frame

2шт.

7

84406162

PIN

Tower/Rod

2шт.

8

84575159

PIN

Tower/Lift Pin

2шт.

9

84575165

PIN

Arm/Lift Cylinder

2шт.

10

84405805

PIN

Parking Leg

2шт.

11

84575162

PIN

Arm/Boom Lever

2шт.

12

84406164

SPACER

60mm ID

8шт.

13

84406163

LOCKING RING

38mm ID x 2.5mm Thk

8шт.

14

84406126

LOCKING RING

25mm ID x 2mm Thk

4шт.

15

84406127

PIN

Security, 6mm OD

4шт.

16

84575167

PIN

Arm/Mobile Frame

2шт.

17

84406161

PIN

Arm

2шт.

18

84511099

PIN

Rod

2шт.

19

1537277

BOLT,Hex, M10 x 1.5 x 85mm, Cl 10.9

2шт.

20

84575169

SPACER,39mm OD x 1.5mm L

39.5mm OD x 1.5mm

10шт.

20

84575170

SPACER,39mm OD x 2mm L

39.5mm OD x 2mm

10шт.

20

84575168

SPACER,39mm OD x 1mm L

39.5mm OD x 1mm

10шт.

Выбрано товаров: 29
