Запчасти Case IH FARMALL 115C (55.100.BE[01]) - VAR - 337323, 743560 - TRANSMISSION, HARNESS (55) - ELECTRICAL SYSTEMS

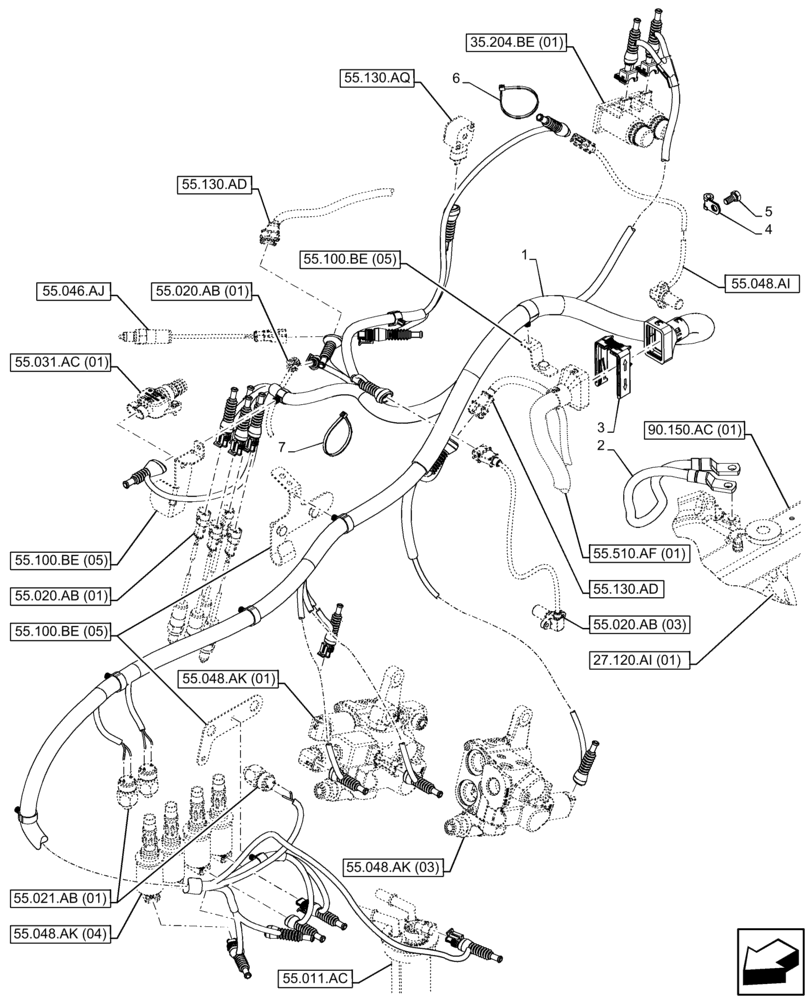

Схема запчастей Case IH FARMALL 115C - (55.100.BE[01]) - VAR - 337323, 743560 - TRANSMISSION, HARNESS (55) - ELECTRICAL SYSTEMS
3
55.031.ac (01)
55.130.ad
55.021.ab (01)
55.100.be (05)
27.120.ai (01)
55.020.ab (03)
7
55.011.ac
6
55.048.ai
55.046.aj
55.020.ab (01)
90.150.ac (01)
55.048.ak (01)
1
55.130.aq
55.510.af (01)
5
4
55.020.ab (01)
55.100.be (05)
55.130.ad
55.048.ak (03)
35.204.be (01)
55.048.ak (04)
55.100.be (05)
2

Артикул

Название

Примечание

Количество

1

47540361

WIRE HARNESS

Transmission Harness, Years: -21-OCT-15

1шт.

1

47728385

WIRE HARNESS

, Start Year: 22-OCT-15

1шт.

2

47369903

NEG BATTERY CABLE,400mm L

1шт.

3

47439121

SLIDER

1шт.

4

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

2шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

14560187

COLLAR,199mm L

2шт.

7

14560287

CABLE TIE,207.00mm L

2шт.

Выбрано товаров: 8
