Запчасти Case IH FARMALL 115C (31.114.AH[04]) - VAR - 743594 - PTO, COVER (540/1000 RPM, SHUTTLE) (31) - IMPLEMENT POWER TAKE OFF

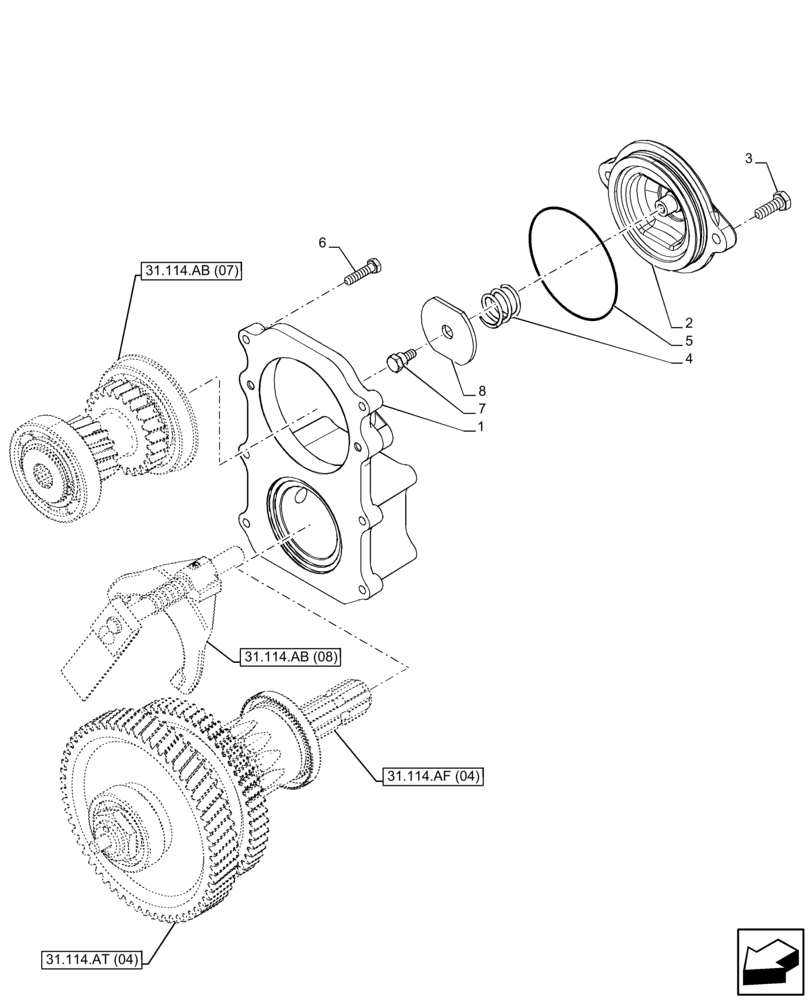

Схема запчастей Case IH FARMALL 115C - (31.114.AH[04]) - VAR - 743594 - PTO, COVER (540/1000 RPM, SHUTTLE) (31) - IMPLEMENT POWER TAKE OFF
4
2
8
6
5
7
31.114.at (04)
3
1
31.114.ab (07)
31.114.ab (08)
31.114.af (04)

Артикул

Название

Примечание

Количество

1

47574845

COVER

Plate Rear Axle Casing

1шт.

2

84325632

COVER

1шт.

3

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

4

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

5

86637742

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

6

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

7

47130774

PIN,13.5mm OD x 22mm L

1шт.

8

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

Выбрано товаров: 8
