Запчасти Case IH FARMALL 115C (31.114.AH[02]) - VAR - 743566 - PTO, COVERS (540/540E RPM, POWERSHUTTLE) (31) - IMPLEMENT POWER TAKE OFF

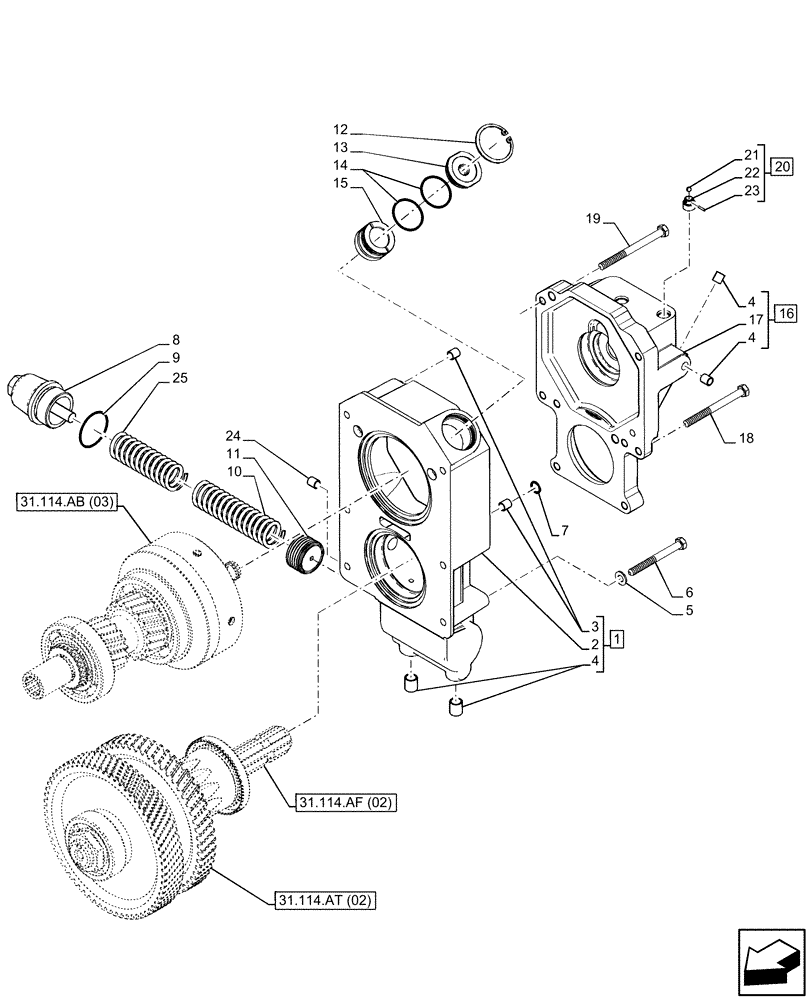

Схема запчастей Case IH FARMALL 115C - (31.114.AH[02]) - VAR - 743566 - PTO, COVERS (540/540E RPM, POWERSHUTTLE) (31) - IMPLEMENT POWER TAKE OFF
31.114.ab (03)
4
5
17
24
11
7
9
23
16
19
12
15
4
20
1
22
21
14
3
18
4
25
10
8
2
6
13
31.114.af (02)
31.114.at (02)

Артикул

Название

Примечание

Количество

1

47404797

COVER

ASSY, Incl 2, 3, 4 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

PTO Cover, Incl in 1

1шт.

3

10839710

DOWEL,M10 x 15.00mm

2шт.

4

14536590

PLUG,10.00mm Dia x 19.80mm L

4шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

2шт.

7

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

8

84424759

CAP

1шт.

9

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

10

5137481

SPRING,Compression, 32mm OD x 122mm L

1шт.

11

5137480

PISTON,40mm OD

1шт.

12

11060176

CIRCLIP,M45 x 1.75mm Thk, Int

1шт.

13

84344468

BRAKE SHOE

1шт.

14

14458480

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

2шт.

15

84344461

BRAKE SHOE

1шт.

16

84574410

COVER

ASSY, Incl 4 (Qty 2), 17

1шт.

17

NSS

NOT SOLD SEPARAT

PTO Cover, Incl in 16

1шт.

18

16045021

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

19

16046121

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

20

84422311

RESTRICTOR

ASSY, Incl 21 - 23, Years: -17-DEC-13

1шт.

20

47646393

RESTRICTOR

, Start Year: 18-DEC-13

1шт.

21

20063430

BALL,4.76mm OD, Gr 100

1шт.

22

NSS

NOT SOLD SEPARAT

Restrictor, Incl in 20

1шт.

23

14158470

LOCK PIN,M2 x 10, Slotted

1шт.

24

14328701

PLUG,M20, Tapered

1шт.

25

84424758

SPRING,Compression, 20mm OD x 84.5mm L

1шт.

Выбрано товаров: 26
