Запчасти Case IH FARMALL 115C (27.120.AF[03]) - VAR - 333411 - FINAL DRIVE, SHAFT & GEAR, MECHANICAL (27) - REAR AXLE SYSTEM

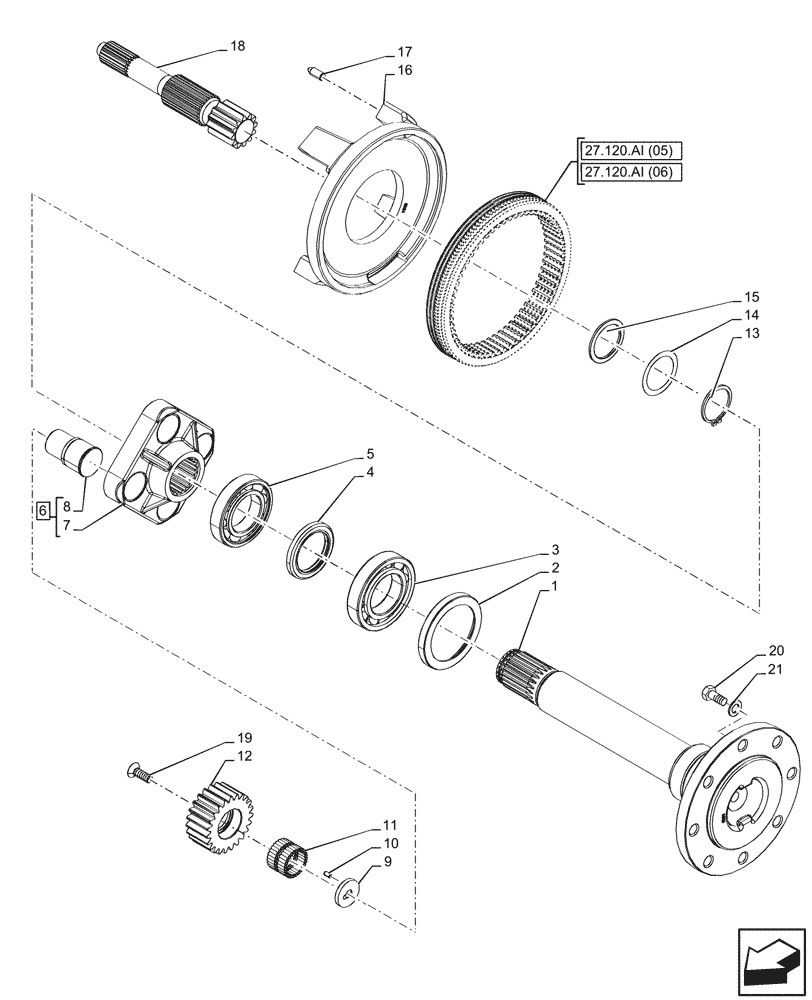

Схема запчастей Case IH FARMALL 115C - (27.120.AF[03]) - VAR - 333411 - FINAL DRIVE, SHAFT & GEAR, MECHANICAL (27) - REAR AXLE SYSTEM
27.120.ai (05)
7
19
9
21
5
10
13
18
3
15
16
11
8
1
4
20
12
2
17
6
14
27.120.ai (06)

Артикул

Название

Примечание

Количество

1

47477248

AXLE

1шт.

2

5199548

OIL SEAL,95.00mm ID x 130.00mm OD x 16.00mm

1шт.

3

20645490

BALL BEARING,75 mm ID x 130 mm OD x 25 mm

1шт.

4

5124206

SEAL,70mm ID x 100mm OD x 10mm Thk

1шт.

5

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

6

47361077

PLANET CARRIER

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 6

1шт.

8

47361064

PIN,44.4mm OD x 83.3mm L

4шт.

9

84318094

SPACER,13mm ID x 43.8mm OD x 7mm L

4шт.

10

10489520

PIN,6mm OD x 12mm L

6 x 12 R80

4шт.

11

84340307

NEEDLE BEARING,38.2mm ID x 48.2mm OD x 15.8mm Thk

4шт.

12

84319725

GEAR,23T, 48.2mm ID, 53mm L

4шт.

13

84349416

CIRCLIP

1шт.

14

84472864

SHIM,55.3mm ID x 72.5mm OD x 0.15mm Thk

1шт.

15

84336055

SPACER,55mm ID x 70mm OD x 4mm L

1шт.

16

84395804

SUPPORT

1шт.

17

87590370

DOWEL

2шт.

18

47361104

SHAFT,299.5mm L

LH, 299.5mm

1шт.

18

47361105

SHAFT,74.5mm L

RH, 274.5mm

1шт.

19

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

4шт.

20

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

8шт.

21

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

8шт.

Выбрано товаров: 22
