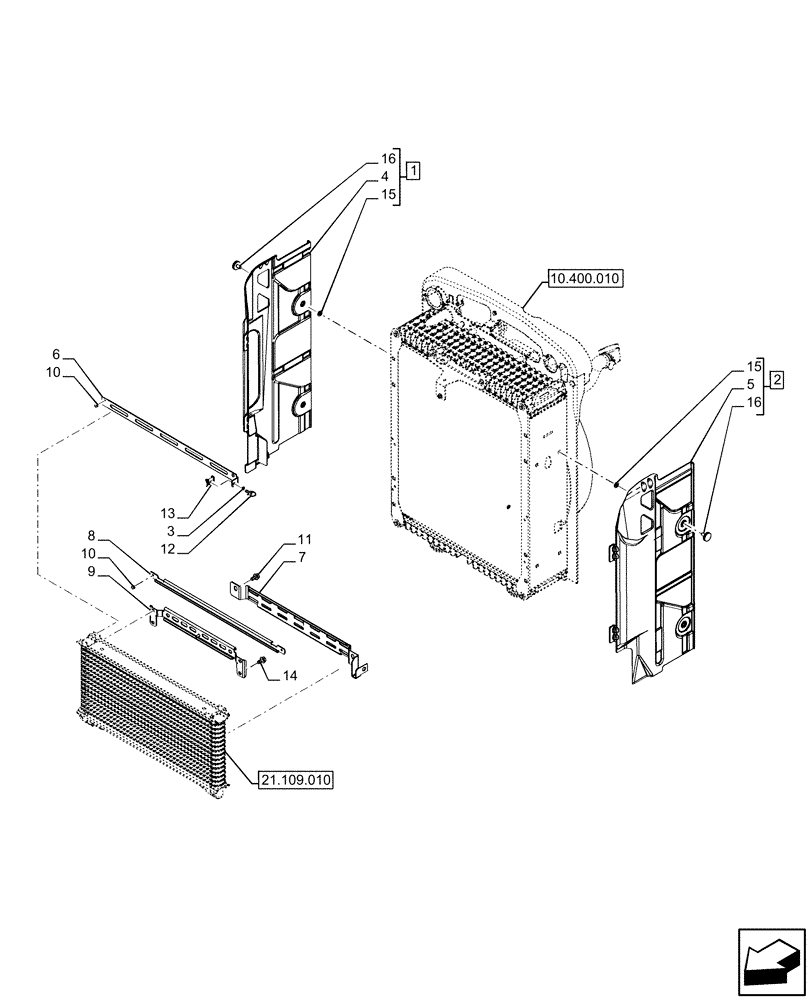

Запчасти Case IH FARMALL 110U (10.400.040) - VAR - 330308, 390399, 758331 - RADIATOR FAN SHROUD, SUPPORT (10) - ENGINE

1

47591401

FLAP

ASSY, Incl 4, 15 (Qty 2), 16 (Qty 2)

1шт.

2

47591400

FLAP

ASSY, Incl 5, 15 (Qty 2), 16 (Qty 2)

1шт.

3

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

4

NSS

NOT SOLD SEPARAT

Flap, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Flap, Incl in 2

1шт.

6

84352366

BRACKET

1шт.

7

84586046

SUPPORT

1шт.

8

84352371

BRACKET

1шт.

9

84467142

SUPPORT

1шт.

10

14644490

RIVET,Pop, M4.8mm OD x 9.9mm L

M4.8 x 9.9

4шт.

11

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

12

87614935

STUD,6mm OD

1шт.

13

82004582

CLIP,Square, 25mm

1шт.

14

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

2шт.

15

47660642

RUBBER BUSHING

4шт.

16

47607447

PIN

4шт.
