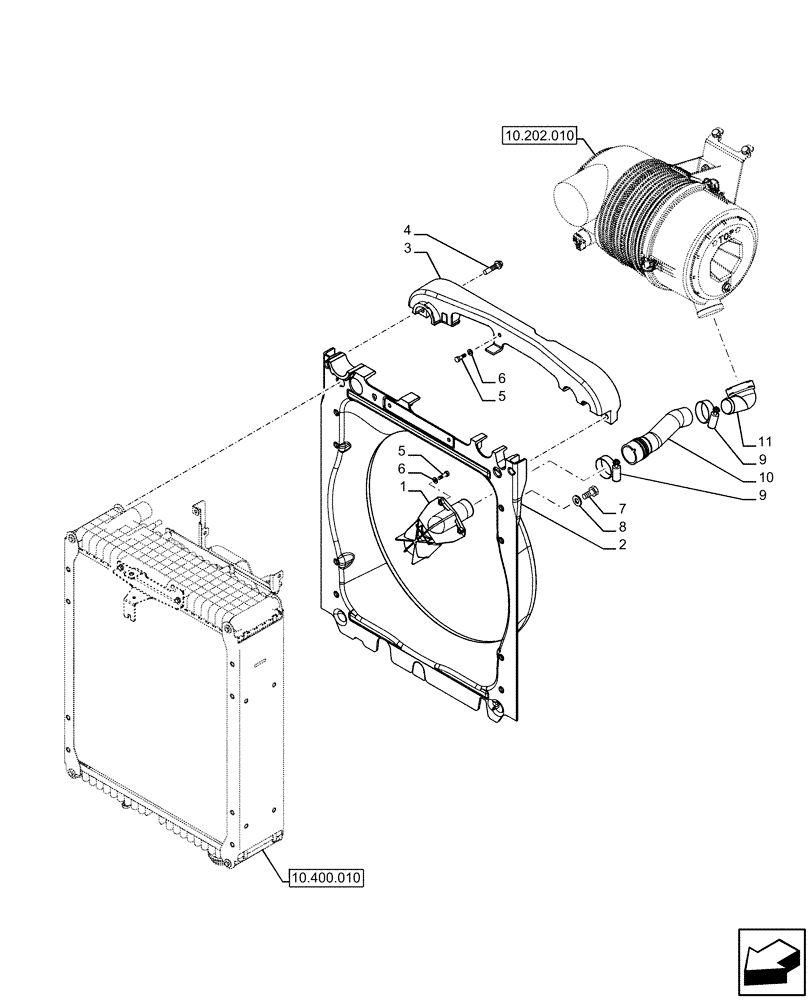

Запчасти Case IH FARMALL 110U (10.400.030) - VAR - 330200 - RADIATOR FAN SHROUD, W/ DUST EJECTOR TUBE (10) - ENGINE

1

84185540

DUST CAP

1шт.

2

47915859

SHROUD

1шт.

3

84425897

SEAL

1шт.

4

47912654

SCREW,Self Tap, Hex, M7 x 3.5 x 40mm

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

3шт.

6

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

7

87360874

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 8.8

3шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

9

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

2шт.

10

47379760

HOSE,30.5mm ID x 223mm L

1шт.

11

84417233

ELBOW

1шт.
