(10.310.070) - VAR - 758385 - SUSPENDED FRONT AXLE, SUPPORT, FLAP

Запчасти Case IH FARMALL 110U (10.310.070) - VAR - 758385 - SUSPENDED FRONT AXLE, SUPPORT, FLAP (10) - ENGINE

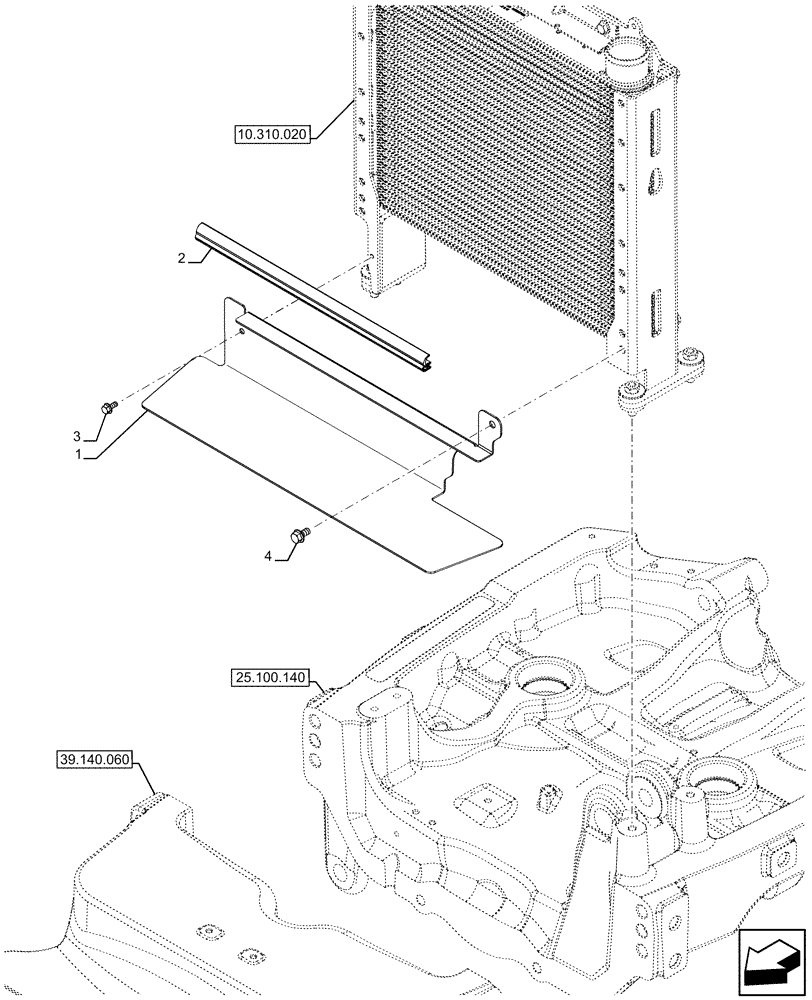

Схема запчастей Case IH FARMALL 110U - (10.310.070) - VAR - 758385 - SUSPENDED FRONT AXLE, SUPPORT, FLAP (10) - ENGINE
25.100.140
1
2
4
3
10.310.020
39.140.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47690686

BULKHEAD

1шт.

2

47394166

PROTECTION STRIP,410mm L

1шт.

3

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

1шт.

4

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 4
