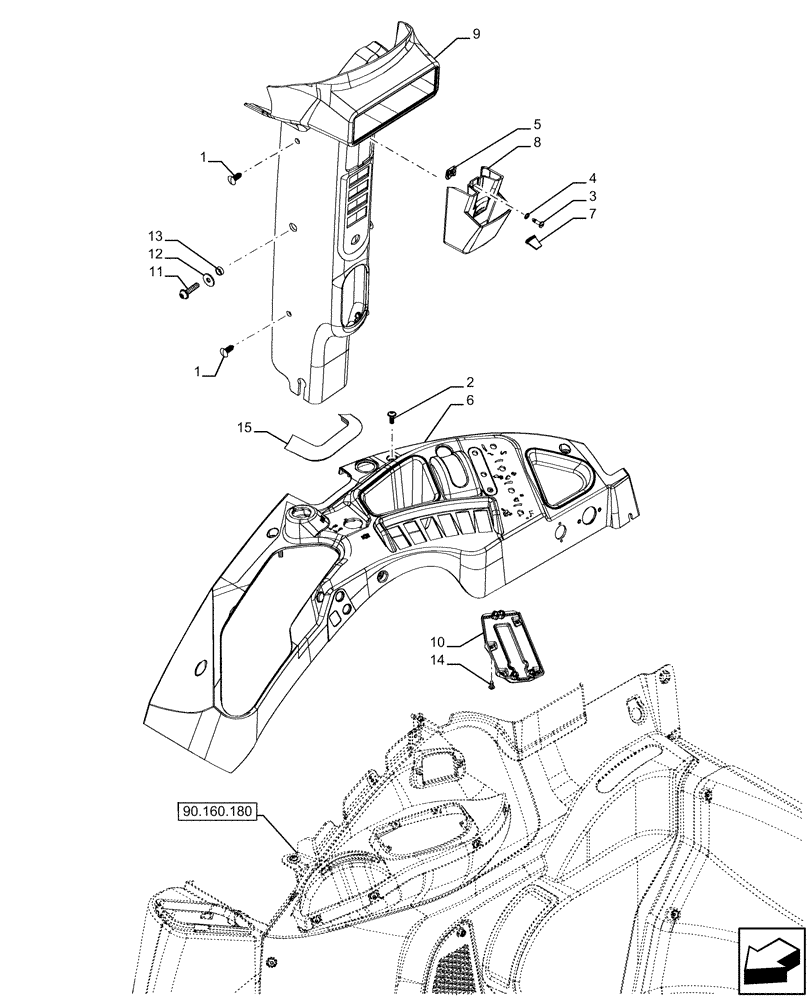

Запчасти Case IH FARMALL 110U (90.160.190) - VAR - 758820 - TRIM, RIGHT SIDE, UPPER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87648059

STUD,Plastic, NH Grey, 7.8mm x 19.5mmL

7шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

5шт.

3

84354393

PIN,18.8mm L

1шт.

4

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

1шт.

5

84291986

CLIP,18.8mm L x 15.9mm W

1шт.

6

47775173

TRIM

1шт.

7

47540207

BUMPER

1шт.

8

47501971

SUPPORT

1шт.

9

47501825

TRIM

1шт.

10

84527606

SUPPORT

1шт.

11

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

1шт.

12

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.

13

47406348

SPACER,7mm ID x 9.5mm OD x 3.5mm L

1шт.

14

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

4шт.

15

84345365

RUBBER SEAL,121.9mm L

1шт.
