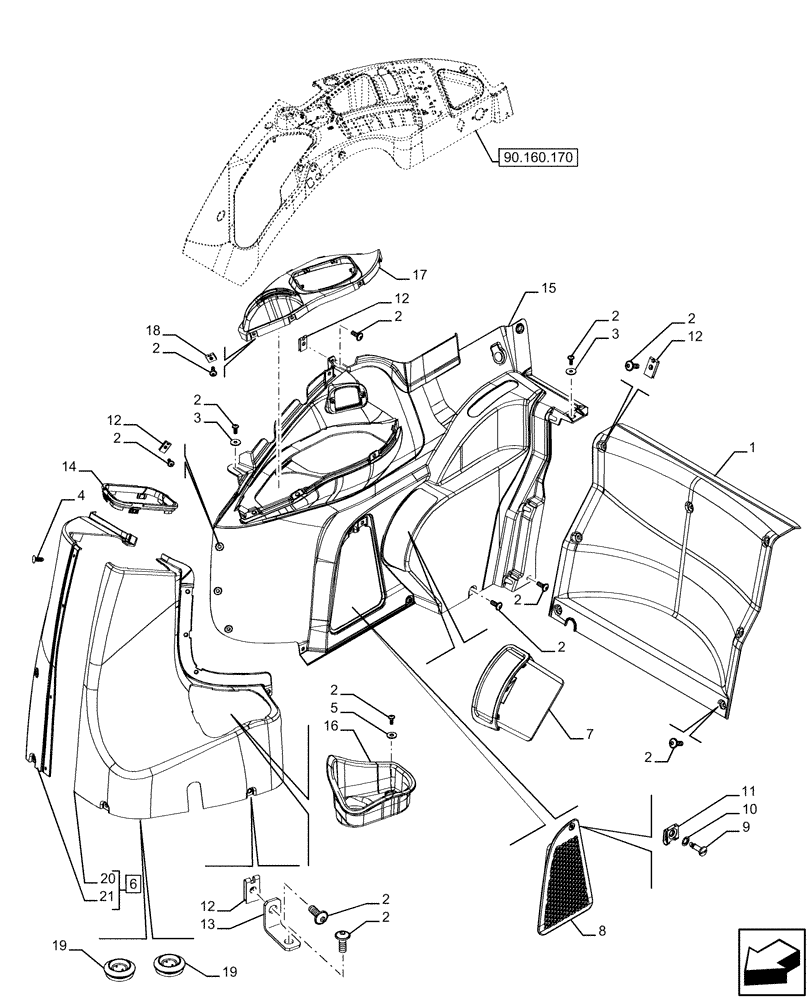

Запчасти Case IH FARMALL 110U (90.160.160) - VAR - 758303, 758821 - TRIM, RIGHT SIDE, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84370212

TRIM

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

31шт.

3

895-30102

WASHER,6.6mm ID x 21mm OD x 1.6mm Thk

2шт.

4

87648059

STUD,Plastic, NH Grey, 7.8mm x 19.5mmL

3шт.

5

12646778

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

6

84347041

TRIM

ASSY, Incl 20, 21

1шт.

7

84386208

UTILITY HOLDER

1шт.

8

84315050

FILTER COVER

1шт.

9

84354393

PIN,18.8mm L

1шт.

10

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

1шт.

11

84291986

CLIP,18.8mm L x 15.9mm W

1шт.

12

14371774

SPRING NUT,M6, U, 12mm long

10шт.

13

84292077

BRACKET

3шт.

14

84370123

COVER

1шт.

15

47800254

TRIM

1шт.

16

84597373

TRIM

1шт.

17

84527601

BEZEL

1шт.

18

14369271

SPRING NUT,U, M6 x 16.20mm x 0.50mm Thk, ZND

4шт.

19

81862738

PLUG,M38 x 28 x 5mm

2шт.

20

84315030

PILLAR

1шт.

21

84315027

COVER

1шт.
