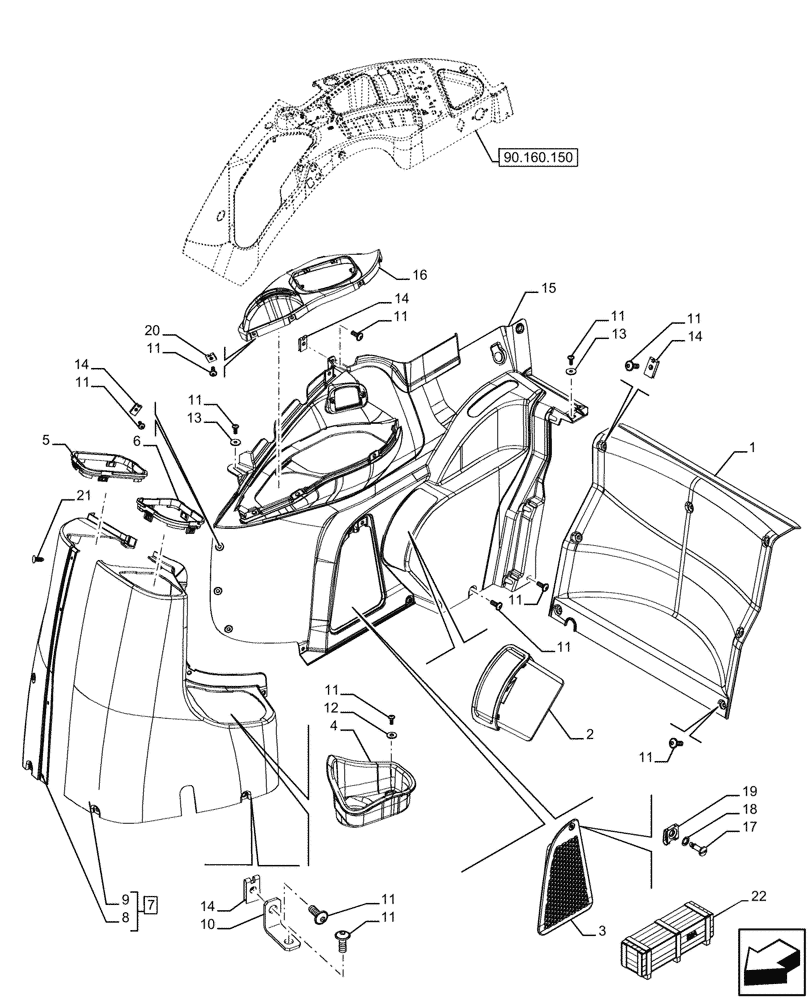

Запчасти Case IH FARMALL 110U (90.160.140) - VAR - 758820 - TRIM, RIGHT SIDE, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84370212

TRIM

1шт.

2

84386208

UTILITY HOLDER

1шт.

3

84315050

FILTER COVER

1шт.

4

84603369

TRIM

Storage

1шт.

5

84370123

COVER

1шт.

6

84370125

INSERT

1шт.

7

84315023

TRIM

ASSY, Incl 8, 9

1шт.

8

84315030

PILLAR

1шт.

9

NSS

NOT SOLD SEPARAT

Trim, Incl in 7

1шт.

10

84292077

BRACKET

3шт.

11

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

31шт.

12

12646778

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

13

895-30102

WASHER,6.6mm ID x 21mm OD x 1.6mm Thk

2шт.

14

14371774

SPRING NUT,M6, U, 12mm long

10шт.

15

47800254

TRIM

1шт.

16

84527601

BEZEL

1шт.

17

84354393

PIN,18.8mm L

1шт.

18

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

1шт.

19

84291986

CLIP,18.8mm L x 15.9mm W

1шт.

20

14369271

SPRING NUT,U, M6 x 16.20mm x 0.50mm Thk, ZND

4шт.

21

87648059

STUD,Plastic, NH Grey, 7.8mm x 19.5mmL

3шт.

22

719302090

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve, Incl 4, 6, 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
