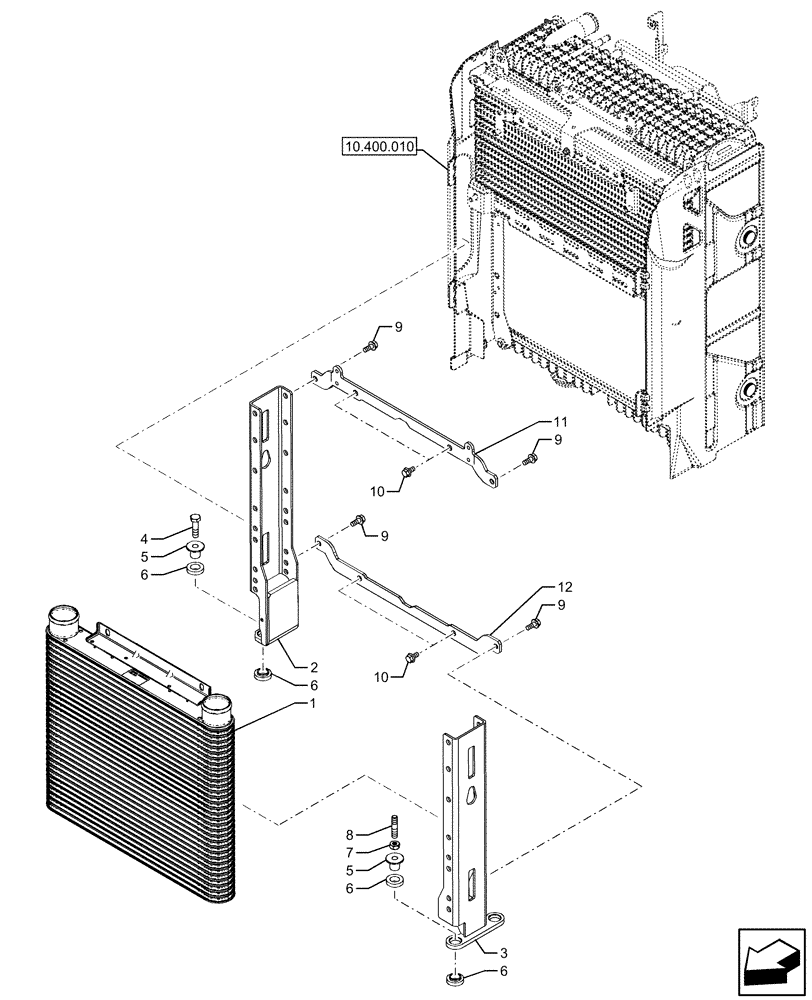

Запчасти Case IH FARMALL 110U (10.310.020) - VAR - 330308, 390399, 758331 - AFTERCOOLER, W/ SUSPENDED FRONT AXLE (10) - ENGINE

1

84350394

INTERCOOLER

1шт.

2

47607968

SUPPORT

1шт.

3

47650377

SUPPORT

1шт.

4

11307021

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

2шт.

5

84370147

SPACER,10.4mm ID x 34mm OD x 22.8mm L

4шт.

6

4952241

PAD

8шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

8

87517050

STUD,M10 x 1.25 x 32mm L

M10 x 1.25 x 32

2шт.

9

16287134

FLANGE BOLT,Hex, M8 x 20mm, Cl 10.9

4шт.

10

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

11

84361197

BRACKET

1шт.

12

47686067

BRACKET

1шт.
