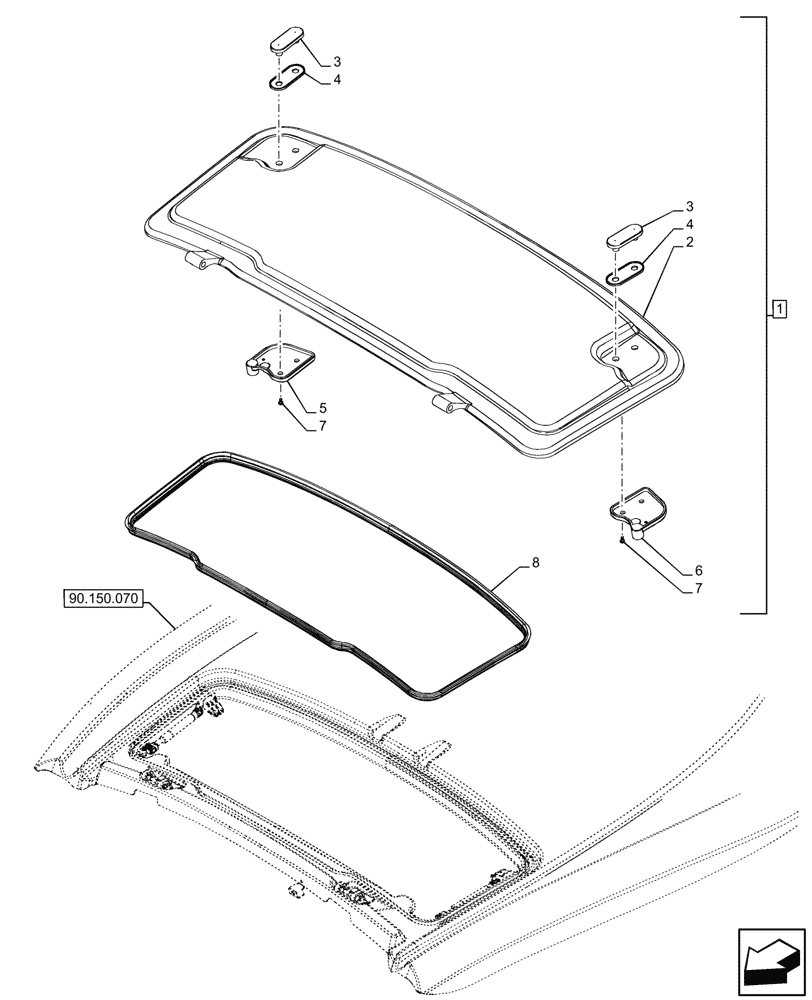

Запчасти Case IH FARMALL 110U (90.156.100) - VAR - 332147, 339434 - ROOF, WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47693977

HATCH

ASSY, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Hatch, Incl in 1

1шт.

3

47620843

SUPPORT

M5

2шт.

4

47620842

SEAL,11.5mm ID x 34mm OD x 4mm Thk

15mm OD x 5.3mm ID x 1mm H

2шт.

5

47715473

SUPPORT

14mm OD x 7mm ID x 2mm H

1шт.

6

47620867

SUPPORT

7mm OD x 5mm ID x 10mm H

1шт.

7

86511823

SCREW,Phillips Drive, Pan HD, M4 x 8mm, Cl 4.8

M8 x 25

2шт.

8

84272323

RUBBER SEAL,2605mm L

1шт.
