(90.116.120) - VAR - 758330 - FRONT FENDER, COMPONENTS

Запчасти Case IH FARMALL 110U (90.116.120) - VAR - 758330 - FRONT FENDER, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

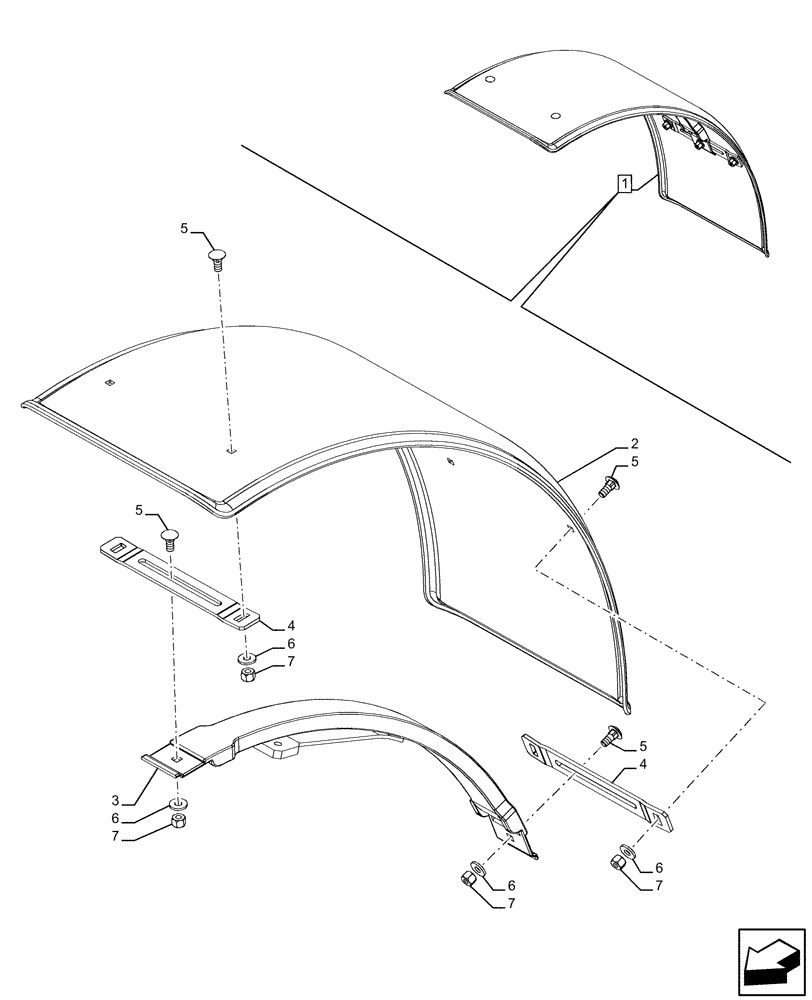

Схема запчастей Case IH FARMALL 110U - (90.116.120) - VAR - 758330 - FRONT FENDER, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
6
6
1
5
2
3
5
6
7
4
7
7
7
5
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87600020

FRONT FENDER

ASSY, Incl 2 - 7

2шт.

2

87612679

FRONT FENDER

1шт.

3

47132609

SUPPORT

1шт.

4

82021040

SUPPORT

2шт.

5

82021059

BOLT,Hex, M10 x 1.25 x 31mm

6шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

7

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

6шт.

Выбрано товаров: 7
