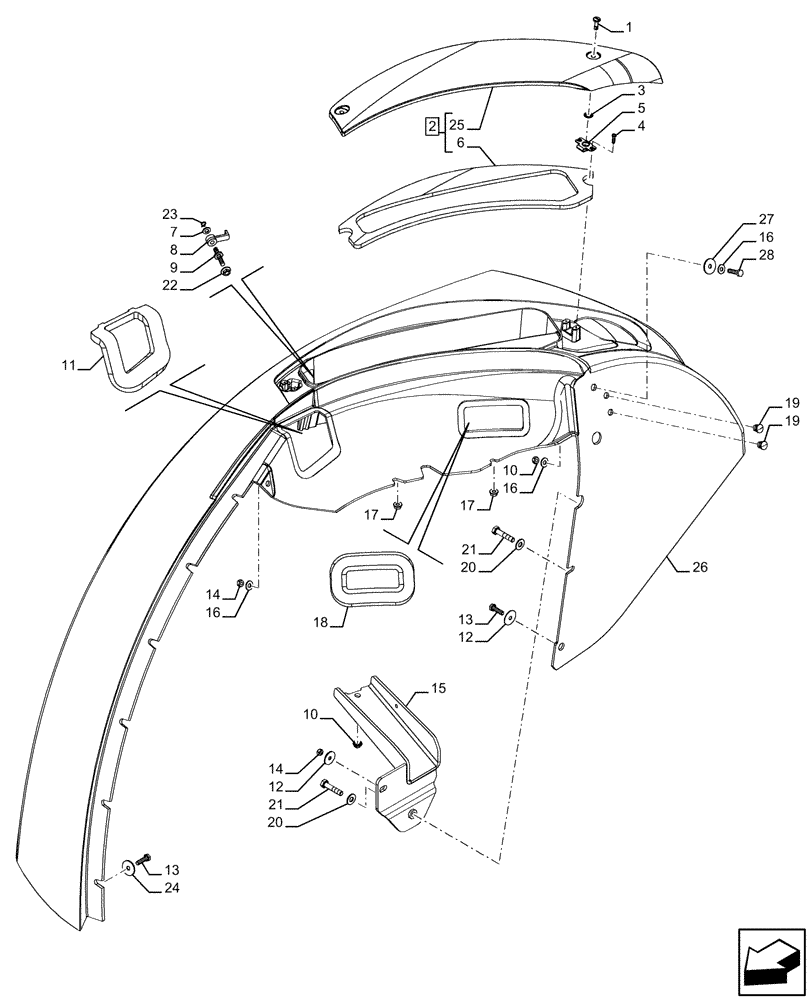

Запчасти Case IH FARMALL 110U (90.116.050) - VAR - 331870 - REAR FENDER, NARROW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84290347

LOCK PIN,6mm OD x 18mm L

2шт.

2

84513723

COVER

ASSY, LH Top Cover, Incl 6, 25

1шт.

2

84513724

COVER

ASSY, RH Top Cover, Incl 6, 25

1шт.

3

84290344

THRUST WASHER,13mm OD x 1mm Thk

2шт.

4

15956607

SCREW,Pan Hd, M3 x 3 x 12mm

4шт.

5

84351743

CLIP,9mm ID

2шт.

6

84221543

SEAL,468.5mm L

Seal, LH, Incl in 2

1шт.

6

84346360

SEAL,468.5mm L

Seal, RH, Incl in 2

1шт.

7

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

8

84341983

LOCK KEY

2шт.

9

84541332

PIN,6mm OD x 37mm L

2шт.

10

13046111

LOCK NUT,Flg Lock, M6

2шт.

11

84516567

1шт.

12

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

13

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

7шт.

14

15896211

NUT,M6, Cl 8

1шт.

15

84315605

BRACKET

LH

1шт.

15

84315616

BRACKET

RH

1шт.

16

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

4шт.

17

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

18

47701914

SEAL,166mm L

1шт.

19

5094079

PLUG,Dome Head

2шт.

20

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

21

86980383

BOLT,Hex, M8 x 40mm, Cl 8.8

2шт.

22

13832101

NUT,Hex, M6 x 1.25

2шт.

23

11065476

SNAP RING,M6, Ext

2шт.

24

47567924

WASHER,6.15mm ID x 34mm OD x 1.5mm Thk

6шт.

25

84337204

TOP COVER

Fender, LH, Incl in 2

1шт.

25

84337208

TOP COVER

Fender, RH, Incl in 2

1шт.

26

84529216

REAR FENDER

LH

1шт.

26

84529220

REAR FENDER

RH

1шт.

27

5177577

SEALING WASHER,5mm ID x 22mm OD x 3mm Thk

1шт.

28

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.
