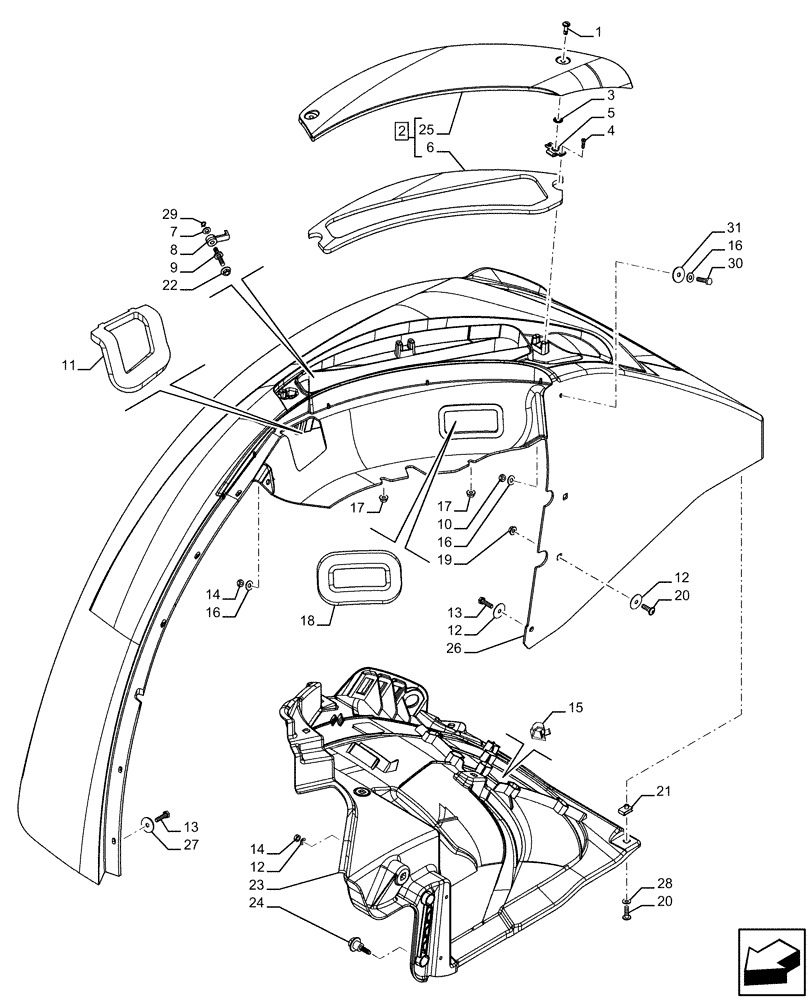

Запчасти Case IH FARMALL 110U (90.116.010) - VAR - 758315 - REAR FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84290347

LOCK PIN,6mm OD x 18mm L

2шт.

2

84513723

COVER

ASSY, LH Top Cover, Incl 6, 25

1шт.

2

84513724

COVER

ASSY, RH Top Cover, Incl 6, 25

1шт.

3

84290344

THRUST WASHER,13mm OD x 1mm Thk

2шт.

4

15956607

SCREW,Pan Hd, M3 x 3 x 12mm

4шт.

5

84351743

CLIP,9mm ID

2шт.

6

84221543

SEAL,468.5mm L

Seal, LH, Incl in 2

1шт.

6

84346360

SEAL,468.5mm L

Seal, RH, Incl in 2

1шт.

7

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

8

84341983

LOCK KEY

2шт.

9

84541332

PIN,6mm OD x 37mm L

2шт.

10

13046111

LOCK NUT,Flg Lock, M6

1шт.

11

84234567

SEAL,156mm L

1шт.

12

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

13

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

7шт.

14

15896214

NUT,M6, Cl 8

2шт.

15

5182865

CLIP

1шт.

16

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

3шт.

17

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

18

47701914

SEAL,166mm L

1шт.

19

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

20

87698793

SCREW,Hex, M6 x 20mm L

9шт.

21

47519375

SPRING CLIP

7шт.

22

13832101

NUT,Hex, M6 x 1.25

2шт.

23

47890147

SUPPORT

LH

1шт.

23

47890151

SUPPORT

RH

1шт.

24

84538906

SCREW

2шт.

25

84337204

TOP COVER

Fender, LH, Incl in 2

1шт.

25

84337208

TOP COVER

Fender, RH, Incl in 2

1шт.

26

47520101

FENDER

LH

1шт.

26

47520103

FENDER

RH

1шт.

27

47567924

WASHER,6.15mm ID x 34mm OD x 1.5mm Thk

6шт.

28

12643721

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

7шт.

29

11065476

SNAP RING,M6, Ext

2шт.

30

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

31

5177577

SEALING WASHER,5mm ID x 22mm OD x 3mm Thk

1шт.
