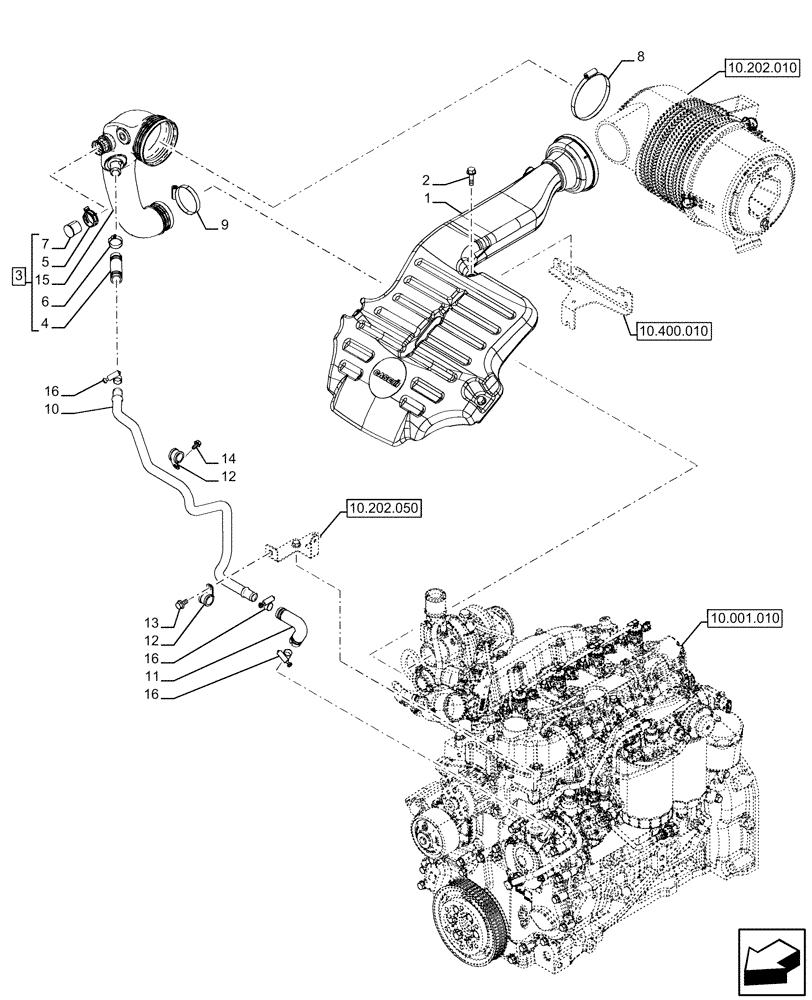

Запчасти Case IH FARMALL 110U (10.202.030) - VAR - 758304 - AIR CLEANER, AIR DUCTS & HOSES (10) - ENGINE

1

47683238

AIR DUCT

1шт.

2

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

3шт.

3

47397423

DUCT

ASSY, Incl 4 - 7, 15

1шт.

4

47397420

SLEEVE,16.7mm ID x 72mm L

1шт.

5

47555022

HOSE CLAMP

1шт.

6

13127670

PIPE CLAMP,27mm - 24mm

1шт.

7

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

8

13001290

HOSE CLAMP,90mm - 110mm, Worm Gear

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

10

47390633

PIPE

1шт.

11

84581948

SLEEVE,16.7mm ID x 122.6mm L

1шт.

12

10450590

CLAMP,18mm, Coat, 9mm Bolt Hole, P Type

2шт.

13

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

14

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

1шт.

15

NSS

NOT SOLD SEPARAT

Air Intake Manifold, Incl in 3

1шт.

16

82039343

HOSE CLAMP,16mm - 27mm

3шт.
