(05.100.043) - MAINTENANCE PARTS - FUSES

Запчасти Case IH FARMALL 110U (05.100.043) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE

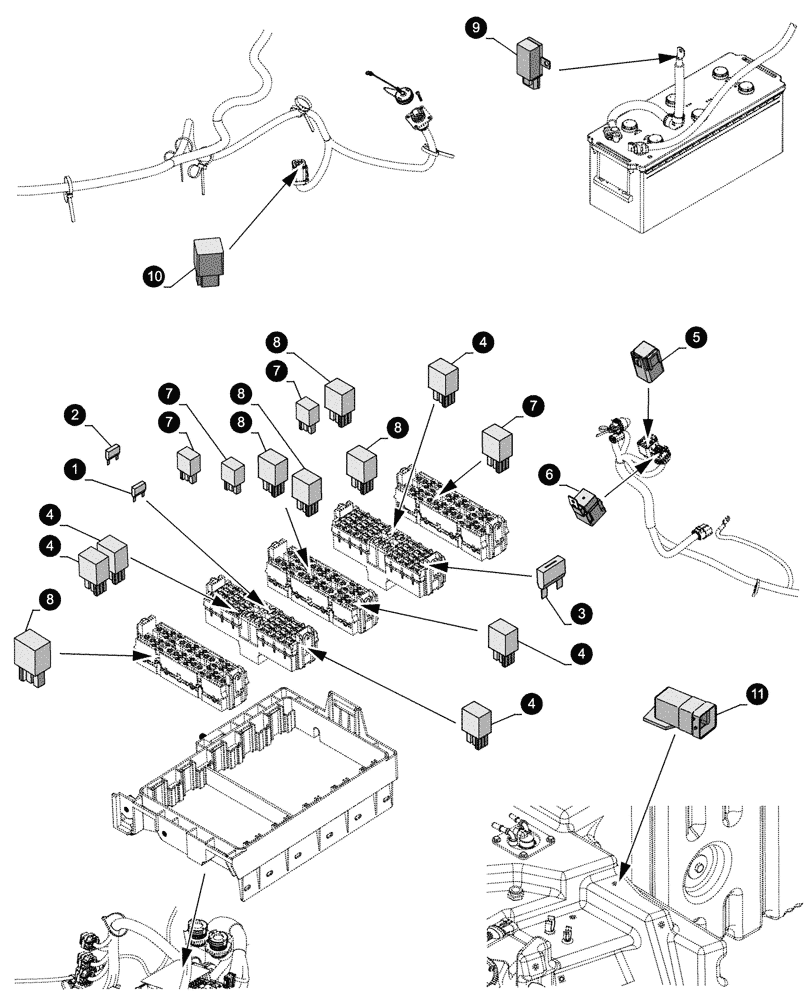

Схема запчастей Case IH FARMALL 110U - (05.100.043) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE
10
1
7
8
2
3
8
8
11
4
4
4
8
9
4
7
6
7
8
7
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5190333

FUSE,40A, Maxi, Orange

40A, Maxival, Orange

1шт.

Valid with Var. 334114, 334115, 334117, 334775, 334778, 334779, 334780, 390430

1шт.

2

5173264

FUSE,30A, Maxi, Green

30A, Maxival, Green

1шт.

Valid with Var. 334114, 334115, 334117, 334775, 334778, 334779, 334780, 390430

1шт.

3

84157159

FUSE,40A, Maxi, Orange

40A, Maxival, Orange

1шт.

Valid with Var. 334114, 334115, 334117, 334775, 334778, 334779, 334780, 390430

1шт.

4

84157157

RELAY,12V, 20A, Micro

Micro For Diverter

1шт.

Valid with Var. 334114, 334115, 334117, 334775, 334778, 334779, 334780, 390430, 758295

1шт.

5

84271717

RELAY,12V, 50A

12V, 70A

1шт.

Valid with Var. 336610, 336612

1шт.

6

82017871

RELAY,12V, 20A

12V, 35A, Maxival

1шт.

Valid with Var. 336610, 336612

1шт.

7

84543528

RELAY,12V, 20A, Micro

For Grab Rail, Road Light

1шт.

Valid with Var. 334114, 334115, 334117, 334775, 334778, 334779, 334780, 390430

1шт.

8

5171083

RELAY,12V, 20A, N.O.

12V, 20A

1шт.

9

87392809

RELAY,High Current, 12V, 190A

12V, 190A, High Current, Battery Disconnect Switch

1шт.

Valid with Var. 334774

1шт.

10

84577117

RELAY,12V, 2A

12V, 2A, Minival, Isobus

1шт.

Valid with Var. 336610, 336612

1шт.

11

47392139

CONTROL UNIT,12V

DEF/ADBLUE™ Module

1шт.

Valid with Var. 334773, 391263

1шт.
