(55.988.020) - VAR - 336763, 336764 - DEF/ADBLUE™ TANK, LEVEL, SENSOR

Запчасти Case IH FARMALL 110U (55.988.020) - VAR - 336763, 336764 - DEF/ADBLUE™ TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS

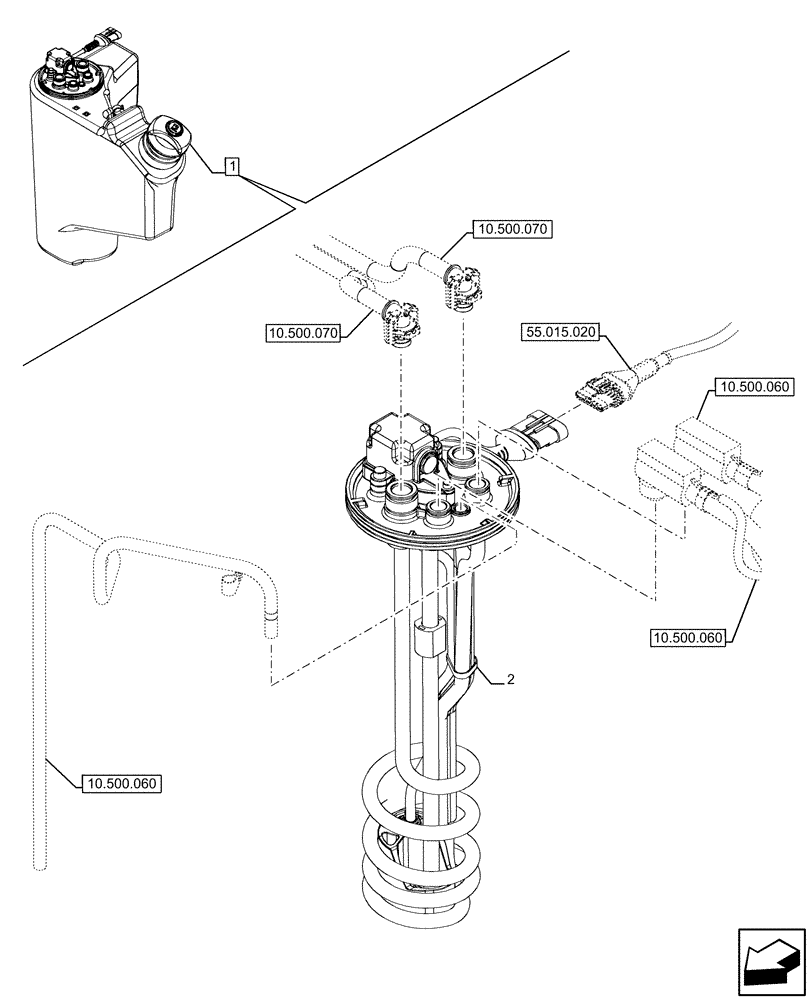

Схема запчастей Case IH FARMALL 110U - (55.988.020) - VAR - 336763, 336764 - DEF/ADBLUE™ TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS
55.015.020
1
2
10.500.060
10.500.060
10.500.060
10.500.070
10.500.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47844797

TANK

ASSY, Incl 2

1шт.

See also Figure 10.500.090

1шт.

2

47664483

SENDER UNIT

Sender, level, and quality sensor

1шт.
