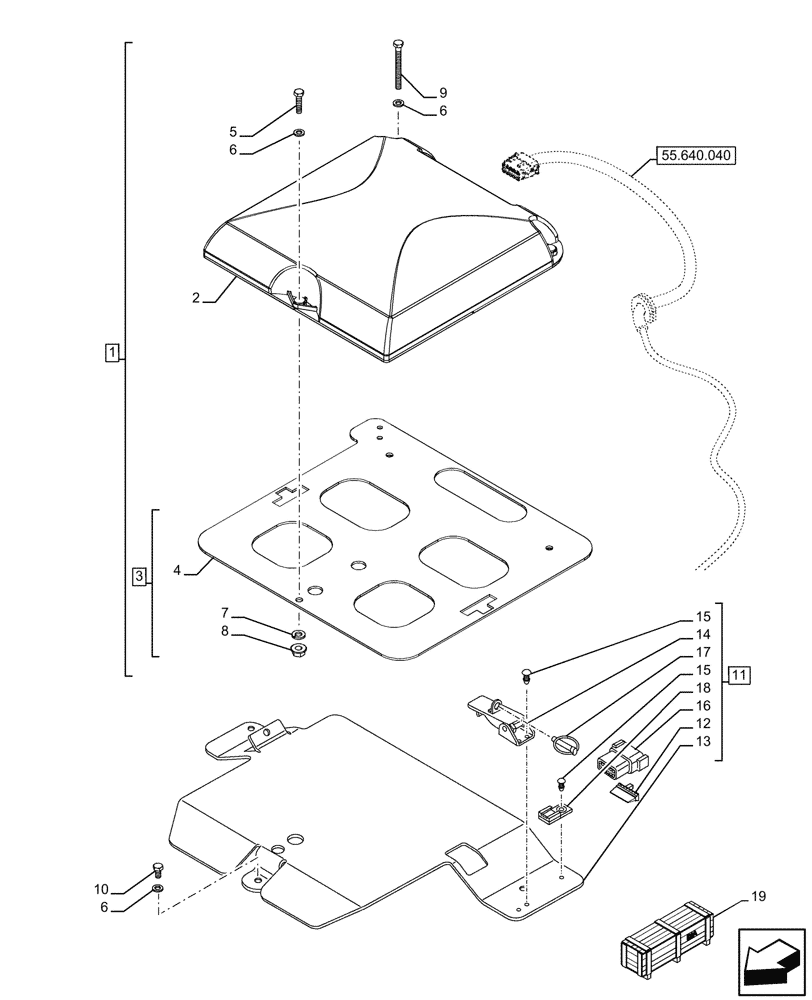

Запчасти Case IH FARMALL 110U (55.640.030) - VAR - 336612 - GPS RECEIVER (55) - ELECTRICAL SYSTEMS

1

84588266

AFS PARTS & PACKAGES

ASSY, Incl 2 - 9

1шт.

2

84574271

GPS RECEIVER

1шт.

3

87491301

MOUNTING PLATE

ASSY, Incl 4 - 9

1шт.

4

87496985

MOUNTING PLATE

1шт.

5

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

7

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

8

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

9

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

10

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

3шт.

11

87634999

SUPPORT

ASSY, Incl 12 - 18

1шт.

12

87648972

WEDGE,Lock, Orange

1шт.

13

87634998

SUPPORT

1шт.

14

87308870

LATCH

1шт.

15

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

3шт.

16

87641584

MULTIPOLE CONNECTOR,12 Pole

1шт.

17

87109290

LOCK PIN,25.4mm OD x 30mm L

1шт.

18

87641585

MOUNTING PARTS

1шт.

19

718095020

DIA KIT, TRACTOR

Pre-Disposition for ISO BUS, Incl 1 - 5, 6 (Qty 3), 7 - 9, 11

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718096020

DIA KIT, TRACTOR

Pre-Disposition for ISO BUS, Incl 1 - 5, 6 (Qty 3), 7 - 9, 11

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
