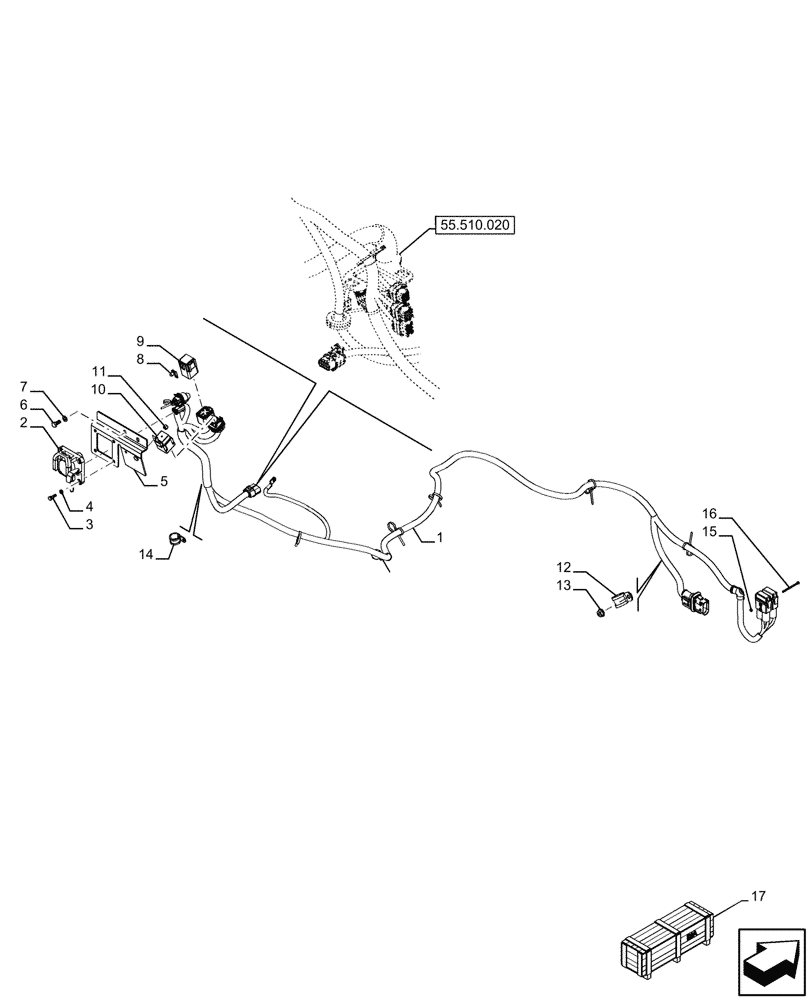

Запчасти Case IH FARMALL 110U (55.640.020) - VAR - 336610, 336612 - ISOBUS SOCKET, RELAY, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47865538

WIRE HARNESS

ISOBUS SOCKET

1шт.

2

87522416

ELEC CONNECTOR,Female, 5 Cavities

1шт.

3

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

4

10571579

LOCK WASHER,M6

4шт.

5

47634600

BRACKET

1шт.

6

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

84386626

WIRE CONNECTOR

1шт.

9

84271717

RELAY,12V, 50A

1шт.

10

82017871

RELAY,12V, 20A

1шт.

11

12574211

NUT,M6 x 1, Cl 8

1шт.

12

10441590

CLAMP,16mm, Coat, P Type

1шт.

13

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

1шт.

14

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

15

10794011

NUT,M4, Cl 8

2шт.

16

15200521

BOLT,Hex, M4 x 60mm, Cl 8.8

2шт.

17

718093010

DIA KIT, TRACTOR

Pre-disposition for ISO BUS, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718095010

DIA KIT, TRACTOR

Pre-disposition for ISO BUS, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718095020

DIA KIT, TRACTOR

Pre-disposition for ISO BUS, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718096010

DIA KIT, TRACTOR

Pre-disposition for ISO BUS, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718096020

DIA KIT, TRACTOR

Pre-disposition for ISO BUS, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
