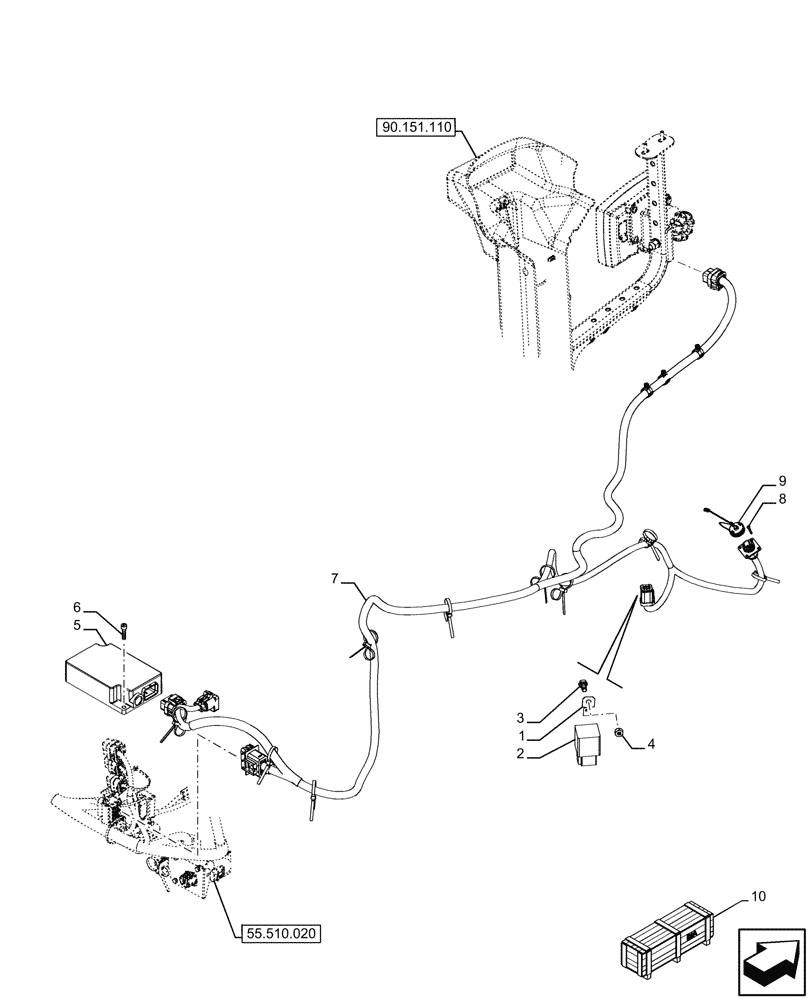

Запчасти Case IH FARMALL 110U (55.640.010) - VAR - 336610, 336612 - ISOBUS SOCKET, WIRE HARNESS, MODULE (55) - ELECTRICAL SYSTEMS

1

47430733

BRACKET

1шт.

2

84577117

RELAY,12V, 2A

1шт.

3

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

4

15896214

NUT,M6, Cl 8

1шт.

5

47748854

ECU

1шт.

6

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

2шт.

7

47704266

WIRE HARNESS

1шт.

8

86597408

SCREW,Cross Pan Hd, #4-40 x 3/4"

4шт.

9

47604748

DUST CAP

1шт.

10

718093010

DIA KIT, TRACTOR

Pre-disposition for ISO BUS, Incl 1 - 4, 6 - 9

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

718095010

DIA KIT, TRACTOR

Pre-disposition for ISO BUS, Incl 1 - 4, 6 - 9

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

718095020

DIA KIT, TRACTOR

Pre-disposition for ISO BUS, Incl 1 - 9

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

718096010

DIA KIT, TRACTOR

Pre-disposition for ISO BUS, Incl 1 - 4, 6 - 9

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

718096020

DIA KIT, TRACTOR

Pre-disposition for ISO BUS, Incl 1 - 9

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
