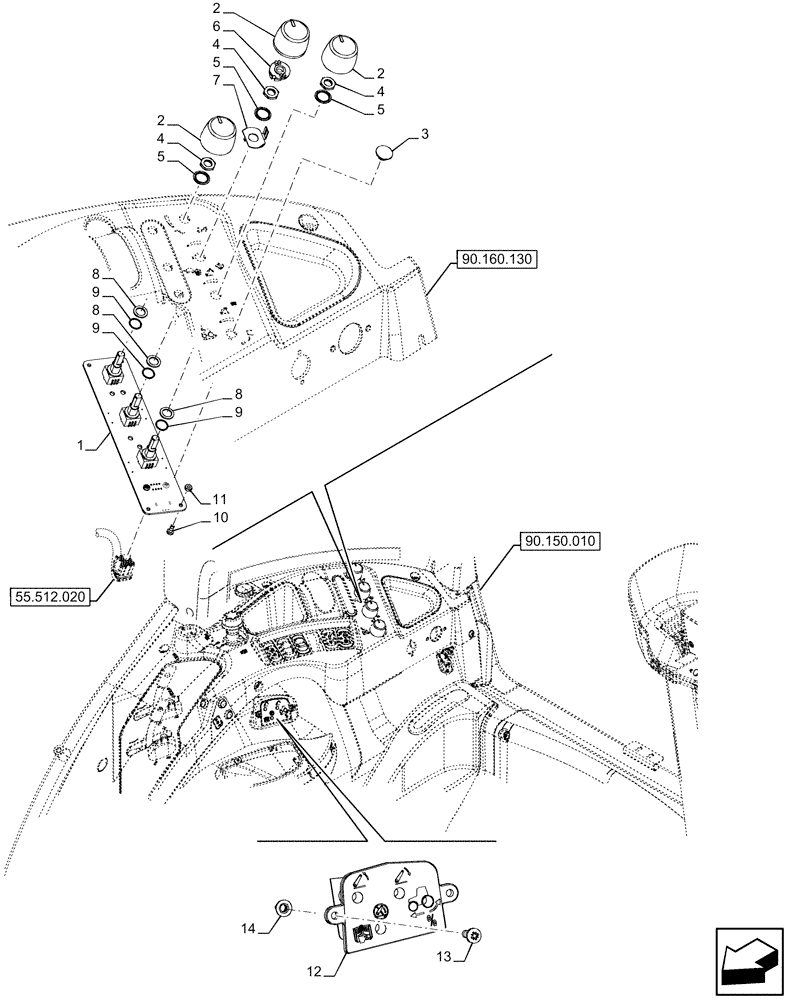

Запчасти Case IH FARMALL 110U (55.523.010) - VAR - 390703 - REAR ELECTRONIC LIFT, CONTROL PANEL, LESS RADAR (55) - ELECTRICAL SYSTEMS

1

47587140

CONTROL PANEL

1шт.

2

86018882

KNOB

3шт.

3

5112608

PLUG,9mm, Black

1шт.

4

47677527

NUT,Hex, M8 x 0.75, Cl 8.8

3шт.

5

47677531

WASHER,10.2mm ID x 14mm OD x 1.1mm Thk

3шт.

6

86018881

WASHER

1шт.

7

47470705

LOCKING PLATE

1шт.

8

14330260

SEALING WASHER,M8.2 x 12 x 1

3шт.

9

47677549

RUBBER SEAL,9.5mm ID x 12.5mm OD x 1.2mm Thk

3шт.

10

13270411

SCREW,Cross Rec Pan Hd, M3 x 8mm

4шт.

11

16101711

NUT,M3, Cl 8

4шт.

12

87599614

PANEL

1шт.

13

13272024

SCREW,Pozidriv Pan Hd, M4 x 12mm, Cl 8.8, Full Thd

2шт.

14

14084011

FLANGE NUT,M4 x .7, Flg

2шт.
