(55.510.010) - VAR - 331444, 332147, 335387, 336730, 339434, 391246 - CAB MAIN WIRE HARNESS

Запчасти Case IH FARMALL 110U (55.510.010) - VAR - 331444, 332147, 335387, 336730, 339434, 391246 - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

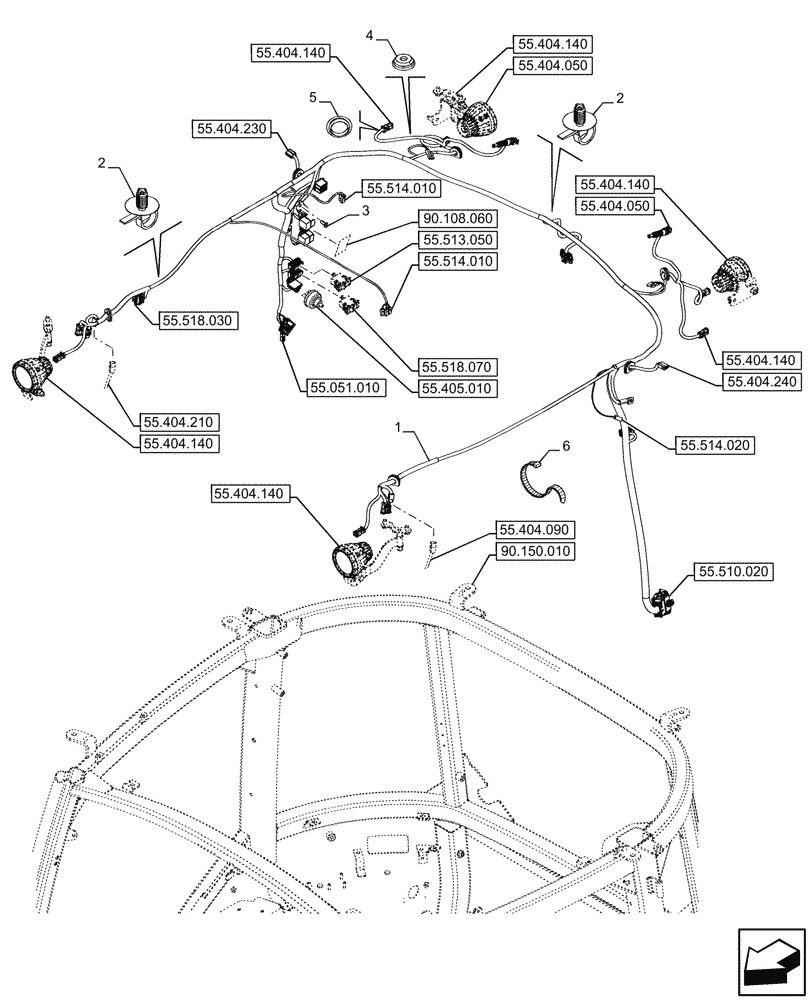

Схема запчастей Case IH FARMALL 110U - (55.510.010) - VAR - 331444, 332147, 335387, 336730, 339434, 391246 - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.510.020
2
4
5
2
1
6
3
55.518.030
55.051.010
55.518.070
90.108.060
55.404.210
55.404.050
55.404.050
55.404.140
55.404.140
55.404.140
55.404.140
55.404.140
55.404.140
55.404.090
55.404.230
55.405.010
55.514.010
55.514.010
55.404.240
55.514.020
55.513.050
90.150.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47927002

WIRE HARNESS

Main Roof

1шт.

2

82033028

CABLE TIE,170mm L

12шт.

3

13276214

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

4

5108455

PLUG

2шт.

5

5198909

PLUG

2шт.

6

14560187

COLLAR,199mm L

4шт.

Выбрано товаров: 6
