(55.408.080) - VAR - 332692 - REVERSE ALARM, LAMP REFLECTOR, WIRE HARNESS, NA

Запчасти Case IH FARMALL 110U (55.408.080) - VAR - 332692 - REVERSE ALARM, LAMP REFLECTOR, WIRE HARNESS, NA (55) - ELECTRICAL SYSTEMS

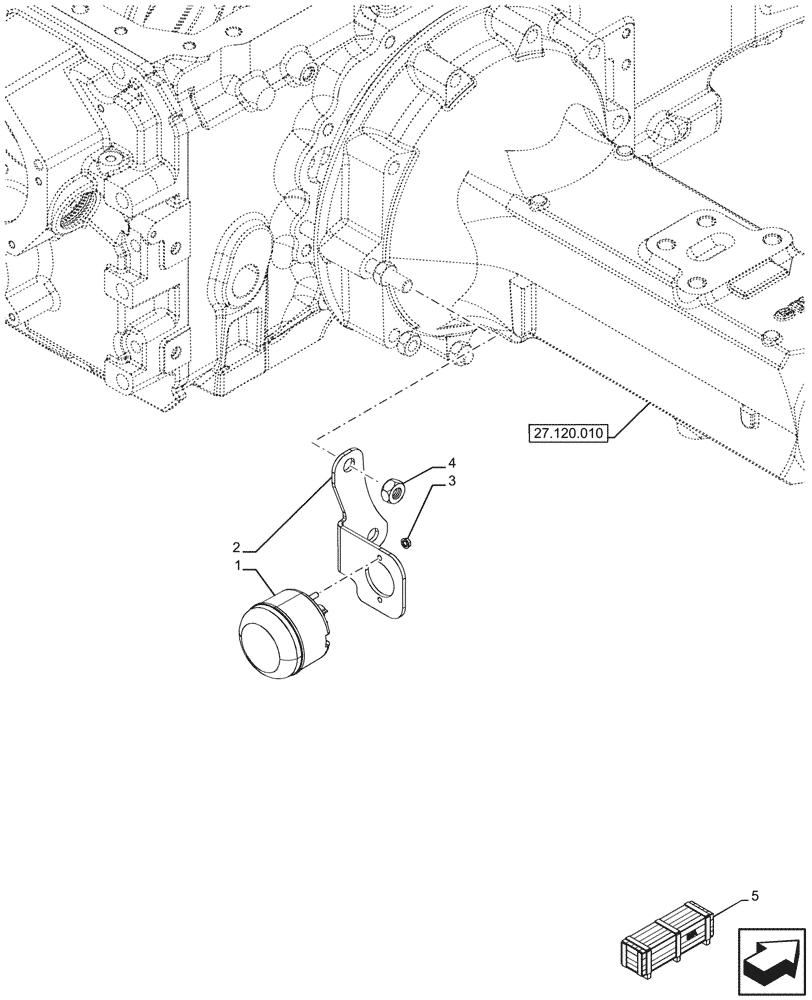

Схема запчастей Case IH FARMALL 110U - (55.408.080) - VAR - 332692 - REVERSE ALARM, LAMP REFLECTOR, WIRE HARNESS, NA (55) - ELECTRICAL SYSTEMS
27.120.010
2
4
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84185527

LIGHT,12V, 21W, Clear

1шт.

2

47604795

BRACKET

1шт.

3

14084111

LOCK NUT,M5 x .8, Flg

2шт.

4

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

2шт.

5

718825070

DIA KIT, TRACTOR

Reversing Alarm Buzzer and Light, Incl 1, 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
