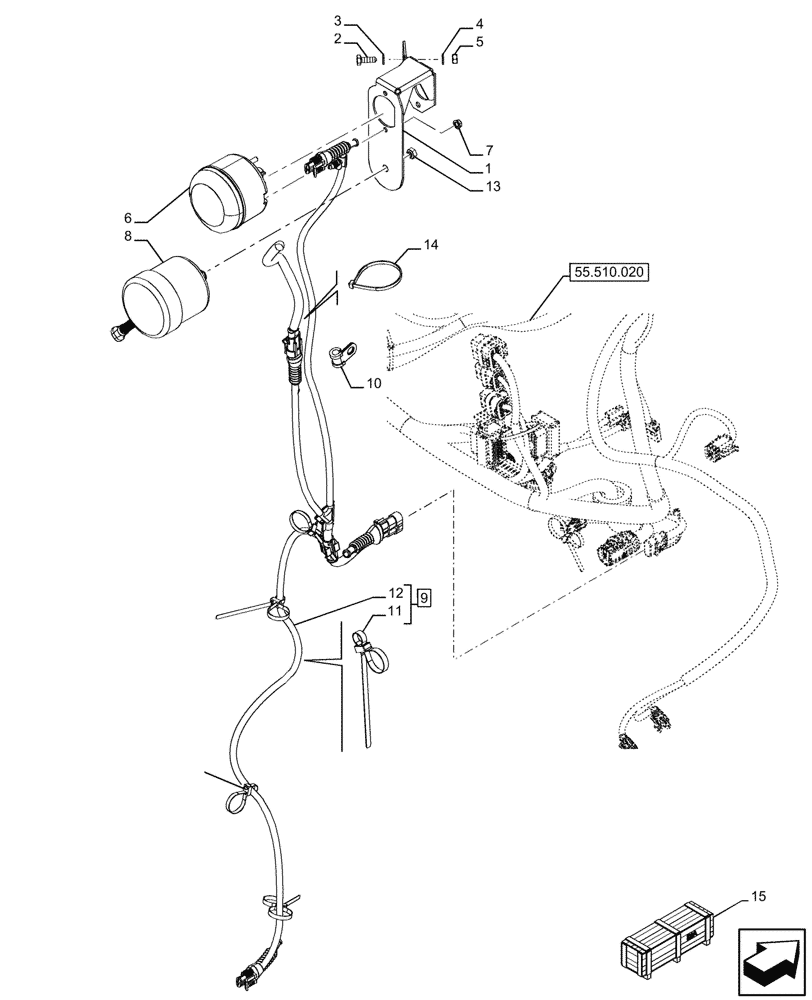

Запчасти Case IH FARMALL 110U (55.408.070) - VAR - 332692 - REVERSE ALARM, LIGHT, WIRE HARNESS, NA (55) - ELECTRICAL SYSTEMS

1

47585046

BRACKET

1шт.

2

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

3

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

5

15896224

NUT,Hex, M6

2шт.

6

84185527

LIGHT,12V, 21W, Clear

1шт.

7

14084111

LOCK NUT,M5 x .8, Flg

2шт.

8

84470196

BACKUP ALARM

Audible Reversing

1шт.

9

84478505

WIRE HARNESS

ASSY, Incl 11, 12

1шт.

10

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

1шт.

11

82013031

CABLE TIE,193mm L

1шт.

12

NSS

NOT SOLD SEPARAT

Wire, Incl in 9

1шт.

13

10720114

NUT,Hex, M6 x 1

1шт.

14

14560187

COLLAR,199mm L

1шт.

15

718825070

DIA KIT, TRACTOR

Reversing Alarm Buzzer and Light, Incl 1 - 6, 8 - 12, 14

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
