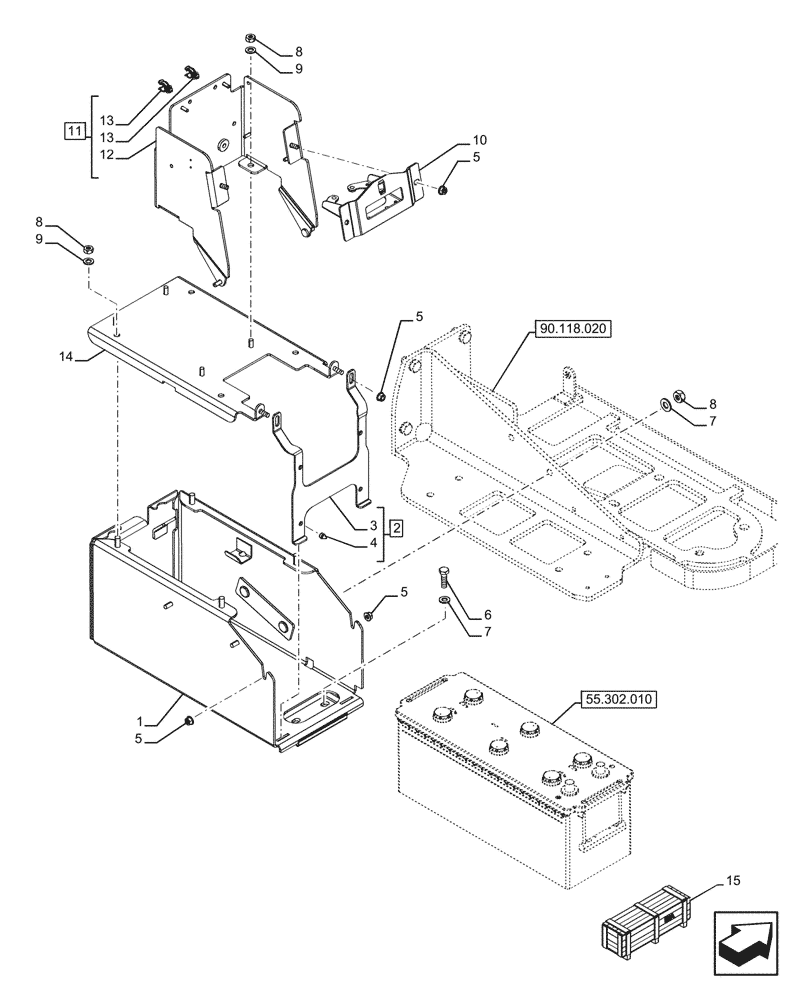

Запчасти Case IH FARMALL 110U (55.302.070) - VAR - 758821 - BATTERY SUPPORT (55) - ELECTRICAL SYSTEMS

1

47700668

BATTERY BOX

1шт.

2

47509620

BRACKET

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Bracket, Incl in 2

1шт.

4

14624587

PLUG,D 6.3 x 3

4шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.

6

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

8

11701711

NUT,Hex, M10, Cl 8, ZND

6шт.

9

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

47748090

BRACKET

1шт.

11

47697801

BRACKET

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Bracket, Incl in 11

1шт.

13

47556035

MOUNT

2шт.

14

47748364

COVER ASSY

1шт.

15

718196070

DIA KIT, TRACTOR

Electrohydraulic Mid Mount with Electronic Joystick, Incl 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
