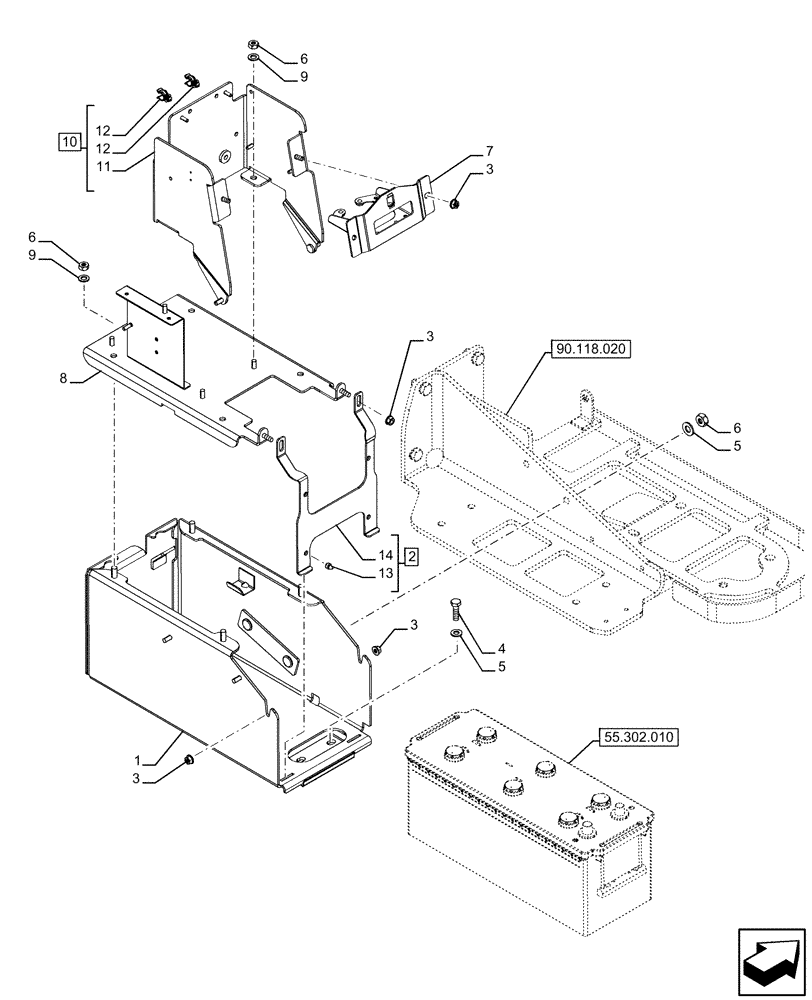

Запчасти Case IH FARMALL 110U (55.302.060) - VAR - 758303, 758820 - BATTERY SUPPORT (55) - ELECTRICAL SYSTEMS

1

47700668

BATTERY BOX

1шт.

2

47509620

BRACKET

ASSY, Incl 13, 14

1шт.

3

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.

4

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

6

11701711

NUT,Hex, M10, Cl 8, ZND

6шт.

7

47748090

BRACKET

1шт.

8

47699375

COVER

1шт.

9

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

47697801

BRACKET

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Bracket, Incl in 10

1шт.

12

47556035

MOUNT

2шт.

13

14624587

PLUG,D 6.3 x 3

4шт.

14

NSS

NOT SOLD SEPARAT

Bracket, Incl in 2

1шт.
